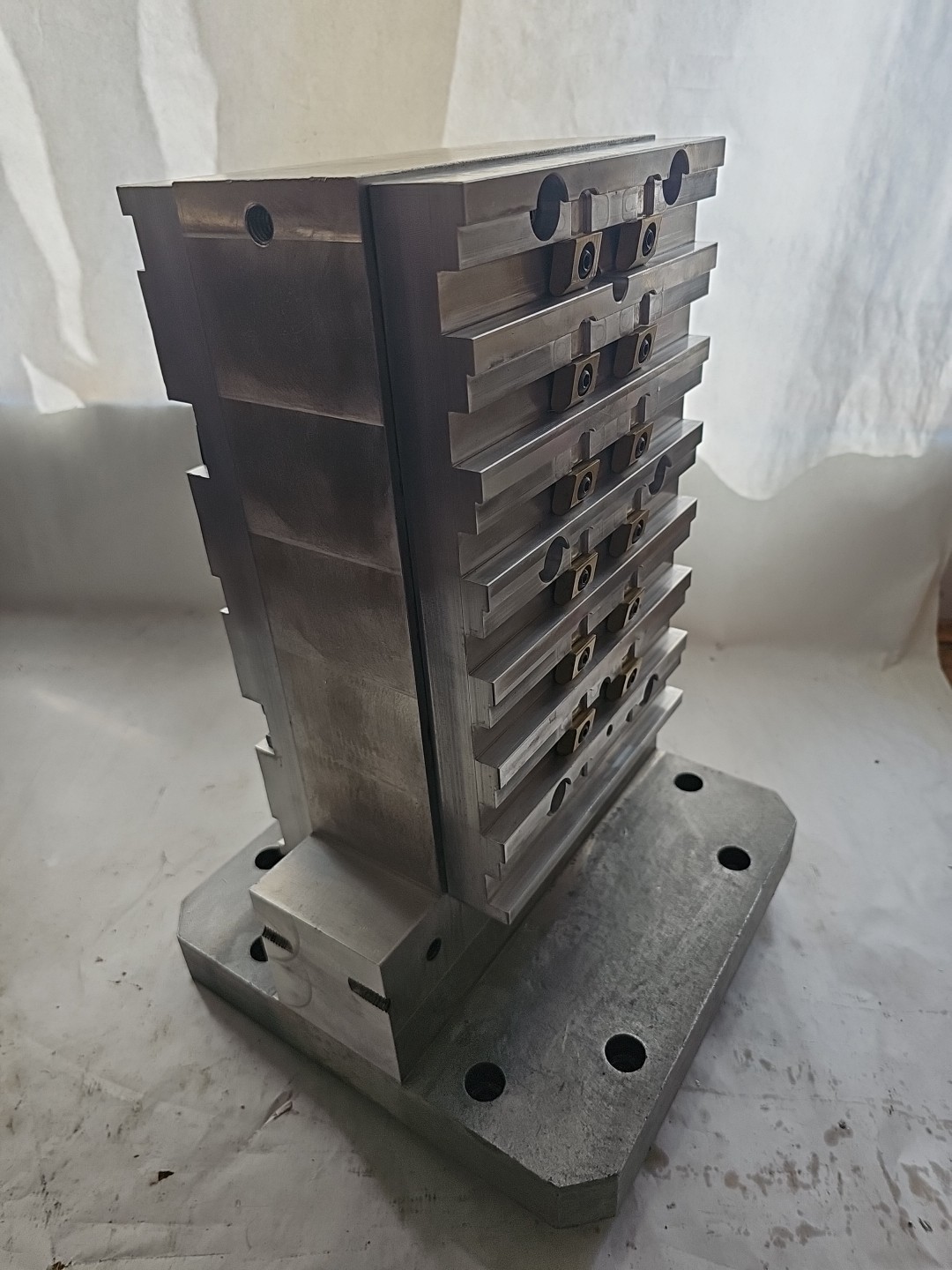

CNC Tombstone Fixture – 2-Sided Aluminum Multi-Station Production Setup w/ Sub-Plates & Toe Clamps
Heavy-duty aluminum CNC tombstone fixture designed for multi-part machining setups. This is a 2-sided production fixture equipped with mounted aluminum sub-plates and toe clamps, allowing immediate use or easy modification for custom parts.
The aluminum construction provides an excellent balance of strength, weight reduction, and machinability, making it ideal for shops looking to modify or adapt the fixture for new parts.
Commonly used in horizontal machining centers or dedicated production environments for repeatable, high-efficiency setups.
Dimensions:
Overall Height (including base): 17\"
Tower Height: 15.25\"
Tower Face Width: 8.25\"
Tower Depth: 6.25\"
Mounting / Base:
Base Dimensions: 11.75\" x 12\"
1\" precision locating pin on bottom (for repeatable alignment)
8 mounting bolt holes
6\" center-to-center spacing
Designed for CNC table or pallet mounting systems
Features:
2 working sides (dual-face tombstone)
Multiple workholding stations per side
Includes aluminum sub-plates
Equipped with toe clamps / edge clamps
Precision machined aluminum surfaces
Lightweight compared to steel fixtures while maintaining rigidity
Ideal for horizontal machining centers or custom setups
Condition:
Used in a working shop environment
Shows normal cosmetic wear from use
Manufacturer tag present but unreadable
No functional issues
Please feel free to reach out with any questions
