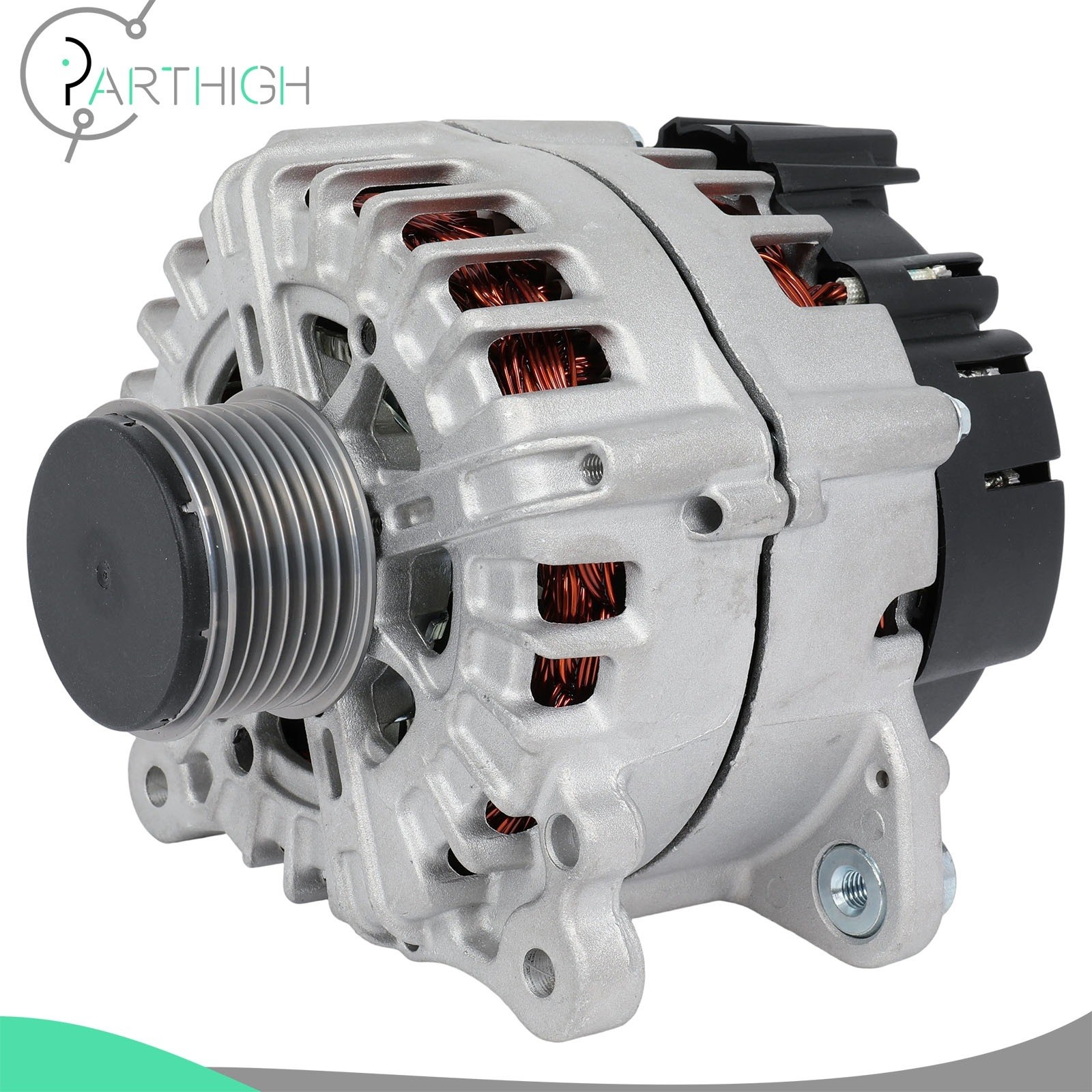

Alternator Fit For Porsche Cayenne 11-14 V6 3.6L Naturally Aspirated 220A 11830 For Sale

Premium Product Traits

• Exceptional quality combined with strong adaptability
• Easy and straightforward to install
• High-caliber aftermarket automotive parts
• Backed by reliable and satisfactory after-sales service
• Precision-engineered for a perfect fit on your car
• Superior performance for a long-lasting service life

Position and Function of the Alternator

Alternator Fit For Porsche Cayenne 11-14 V6 3.6L Naturally Aspirated 220A 11830

Premium Product Traits

• Exceptional quality combined with strong adaptability
• Easy and straightforward to install
• High-caliber aftermarket automotive parts
• Backed by reliable and satisfactory after-sales service
• Precision-engineered for a perfect fit on your car
• Superior performance for a long-lasting service life

Position and Function of the Alternator

In the automotive power and electrical system, the alternator is a core on-board power supply device and also the charging manager for the battery. As a key electrical component attached to the engine, it is installed in the engine compartment and driven by the engine pulley, serving as the primary power source for the vehicle's entire electrical system. It works in conjunction with the battery to supply power to the whole vehicle, being responsible for powering all on-board electrical equipment and recharging the battery.

Main Specifications

• Amperage Rating:220A
• Decoupled Or Clutch Pulley:Yes
• Fan Type:IF
• Belt Type:Serpentine Belt
• Pulley Groove Quantity:7
• Pulley Included:Yes
• Pulley Type:Clutch
• Regulator Type:IR
• Rotation Direction:CW
• Voltage:12V
• Pulley Part Numbers
  • 11830, 03H903023K, 03H903023KX, 958603121, 95860312100, 95860312101, 958603121A, FG23S073, 03H903023K, UD17240A, 440596, 439856, A3154

  Vehicle Fitment

  • Porsche Cayenne 2011-2014 V6 3.6L Naturally Aspirated
  • Porsche Cayenne 2016-2019 V6 3.6L Naturally Aspirated
  • Volkswagen Touareg 2013-2017 V6 3.6L Naturally Aspirated From StepsOf Turn off the engine, disconnect the negative battery terminal and clean the engine compartment.

    ② Prepare tools: socket wrench, torque wrench, belt tensioner tool.

    ③ Mark the wiring connectors and belt routing of the original alternator.

    2.Remove the Old Alternator:

    ① Loosen the drive belt with a tensioner tool and remove the belt from the pulley of the old alternator.

    ② Unplug the electrical connector and remove the battery power cord from the B+ terminal.

    ③ Loosen and remove the fixing bolts, take off the old alternator, and clean dust and oil from the mounting position.

    3.Install the New Alternator:

    ① Place the new alternator into the mounting bracket, align the holes, and screw in the main fixing bolts (leave 1-2 turns loose for belt adjustment).

    ②Route the belt back to the alternator pulley as marked, tension the belt with a tensioner.

    ③Tighten the adjustment bracket bolts → main fixing bolts in sequence and lock them to the standard torque of the vehicle manual.

    ④Reconnect and tighten the power cord on the B+ terminal, and plug in the electrical connector until a "click" is heard to confirm locking.

    4 Power-On Test and Finishing:

    ① Reconnect the negative battery terminal and start the engine to idle for 3-5 minutes.

    ② Inspection: the pulley runs without jamming or abnormal noise, and the alternator has no oil leakage/peculiar smell.

    ③ Turn on high-power electrical appliances such as air conditioners and car lights to test stable power supply without belt slipping "squeak".

    ④ Clean up tools and reset the engine compartment guard plate/clips.

    General Protection

    1.Avoid colliding with the alternator bearing and wiring connector during installation to prevent component damage.

    2.The alternator is a precision electrical component, do not rinse it directly with water to prevent internal water intake and short circuit.

    3.If there is rust on the mounting position, a small amount of high-temperature resistant threadlocker can be applied after light sanding to prevent bolts from loosening due to vehicle vibration.

    Key Notes

    • Please check your vehicle's make, model, year and OE number before purchase to ensure a perfect fit.
    • If you have any questions about compatibility or installation, feel free to contact us.
    • Don't let a faulty alternator leave you stranded! Upgrade your vehicle with our premium alternator today—fast shipping, precise fit, and dependable long-term performance!

    Item SpecificsBrand PARTHIGHType AlternatorVoltage 12 VFeatures Clockwise RotationManufacturer Part Number P135577T01OE/OEM Part Number 11830, 03H903023K, 03H903023KX, 958603121Amperage 220 AManufacturer Warranty 1 YearPerformance Part NoCountry/Region of Manufacture UnknownFinish PolishedUniversal Fitment NoVintage Car Part NoInterchange Part Number 95860312100, 95860312101, 958603121A, FG23S073Pulley Groove Quantity 7Mileage More Than 100,000 milesSuperseded Part Number 03H903023K, UD17240A, 440596, 439856, A3154Placement on Vehicle FrontRegulator Type IRFan Type IFFitment Type Direct ReplacementPart Name AlternatorMaterial Metal,AluminumCalifornia Prop 65 Warning YesBelt Type Serpentine BeltPulley Type ClutchPulley Class SC7Decoupled Or Clutch Pulley YesPulley Included Yes
    Warning

    (California Customers should pay more attention about it.)

    Payment

    We accept all payment

    Shipping

    99% of orders shipped within 24 hours.

    2-8 days in transit.

    Nice and strongpacking.

    UPS, USPS,fedExcomes to be ourfirst choice.

    Return

    This item is backed by our 1-year warranty.

    Refund will be given as money back or replacement

    Item must be returned in original pacakge and packing the same as received.

    Seller isresponsible for the return if delivered item not the same as described orreceived damaged.

    About Us

    If you have a question about the itemyou should contact us before offerding.

    Any problem fund, do contact us please, any question or problem will be replied within 24 hours (except the weekend and holiday).

    Our Customer Service Team is always online to answer.
