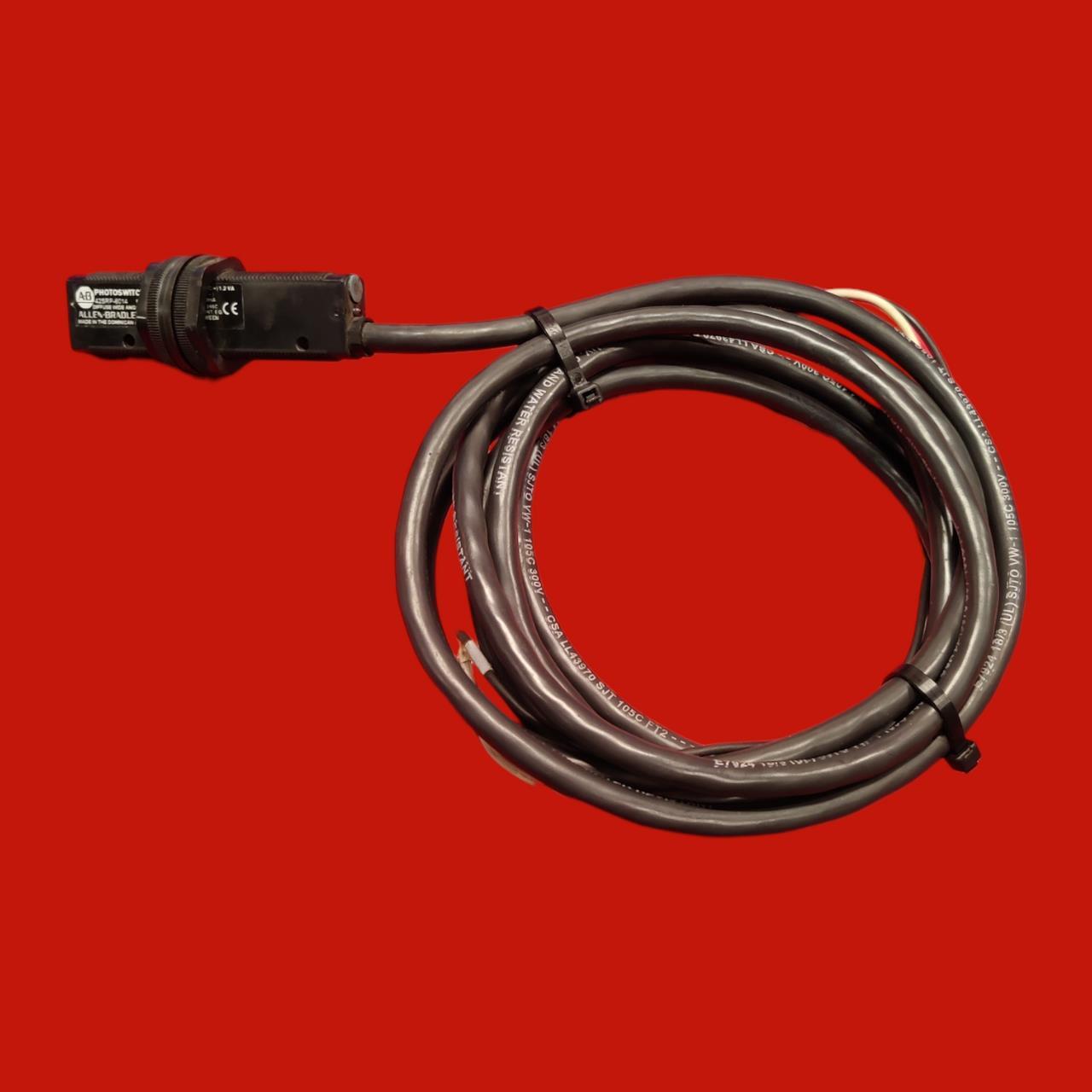

Allen Bradley Compact Photo Sensor, 42SRP-6014 For Sale

Allen Bradley Compact Photo Sensor, 42SRP-6014

PN: 42SRP-6014

The Allen Bradley 42SRP-6014 is a compact photo sensor that is 91.4 mm long and has a wide angle diffuse sensing mode. It has a sensing distance of 2.54 - 380 mm and a 3 meter, 300 volt cable.

• Degree of protection (NEMA): 4X
• Degree of protection (IP): IP67
• Width sensor: 12.7 mm
• Height of sensor: 25.4 mm
• Length of sensor: 91.4 mm
• Sensing mode type: Wide angle diffuse
• List of degrees of protection (NEMA): NEMA 3, 4X, 6, 12 & 13
• Vibration: 10...55 Hz, 1 mm amplitude, meets or exceeds IEC 60947-5-2
• Shock: 30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
• Setting procedure: Manual adjustment
• Response time: 1 ms
• Voltage type: AC
• Type of switching output: Other
• Type of electric connection: Cable
• Sensing mode: Light switching
• Current consumption, max: 35 mA
• Lens material: Acrylic
• Light source: Infrared 880nm or visible red 650nm
• Operating voltage/mode: 120V AC, light operate
• Output type: Both NPN and PNP (DC), MOSFET (AC/DC)
• Connection type: 3 m, 300V cable
• Suitable for safety functions: No
• With time function: No
• Pre failure notice: No
• With reflector: No
• Unit protection: Reverse polarity, false pulse
• Supply voltage: 20...132V AC/DC, 20...264V AC/DC
• LED indicators: Red: when ON (or illuminated) the sensor output is activated, when dark it is OFF
• Material housing: Plastic
• Housing material: Noryl®
• Material of optical surface: Plastic
• Category Standard: ON/OFF
• Relative humidity, max: 95 %
• Operating temperature: -40 °C
