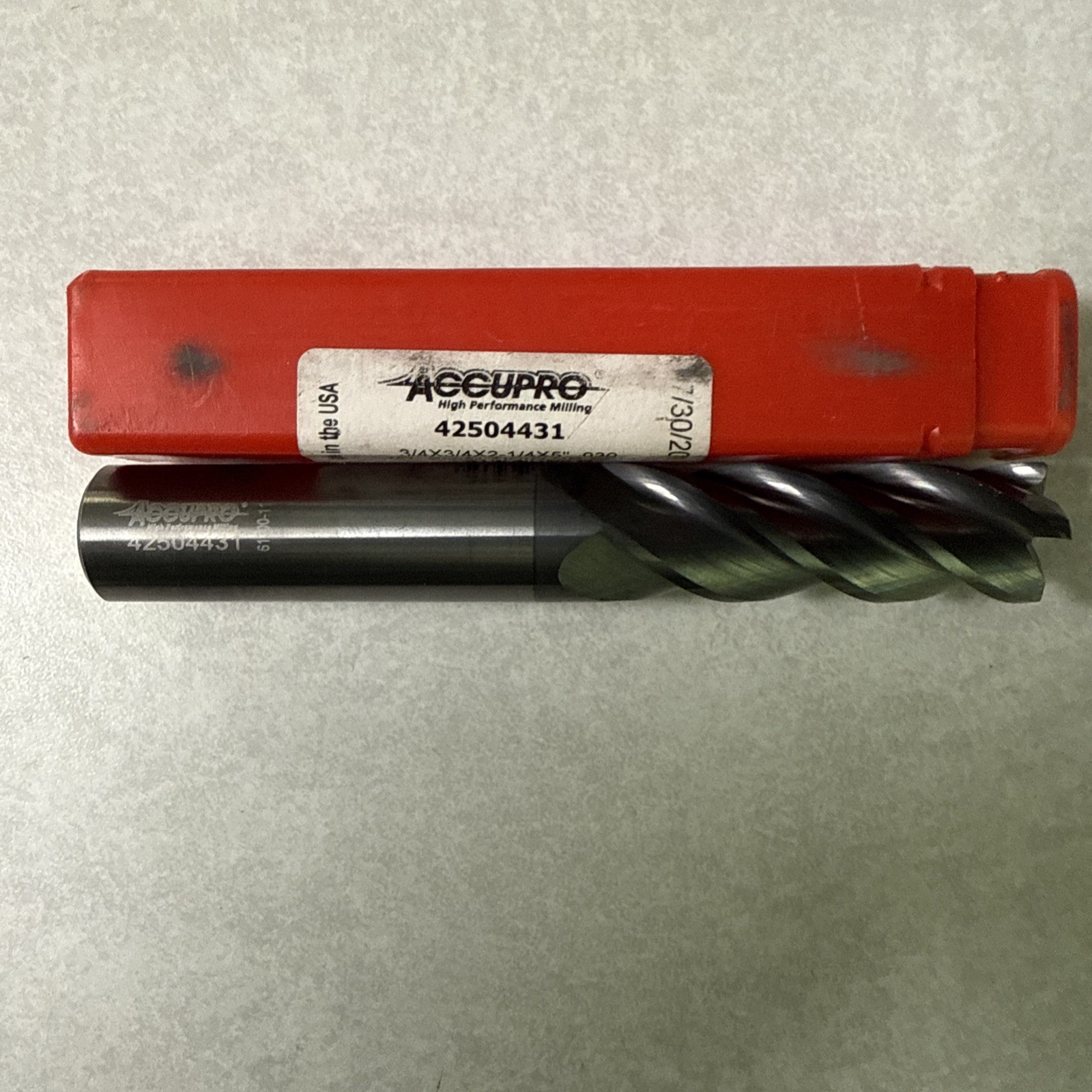

Mill Diameter (Inch): 3/4
Mill Diameter (Decimal Inch): 0.7500
Number Of Flutes: 4
Length of Cut (Inch): 2-1/4
Single Or Double End: Single
End Mill Material: Solid Caroffere
Chipbreaker: No
Coating/Finish: AlTiCrSiN
Overall Length (Inch): 5
Centercutting: Yes
Flute Direction: Right Hand
Corner Radius (Decimal Inch): 0.0300
Variable Index: Yes
Helix Angle: 38.00
Cutting Direction: Right Hand
Coolant Through: No
Pitch: Normal
Overall Length (Decimal Inch): 5.0000
End Type: Corner Radius
Length Of Cut (Decimal Inch - 4 Decimals): 0.8750
Length Type: Standard
Flute Type: Spiral
Extended Reach: Yes
Shank Type: Straight-Cylindrical
Material Removal Type: Roughing & Finishing
Shank Diameter (Decimal Inch): 0.7500
Shank Diameter (Inch): 3/4
Reach Length (Decimal Inch): 2.2500
Reach Length (Inch): 2-1/4
Shank Diameter Tolerance: h6
Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
UNSPSC Code: 27112803
Primary Workpiece Material Code: P; S; H; K; M
Material Grade: Submicron
Series: ECI-4-VF
Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Coating Classification: PVD
For Use With.: Toolholders
Manufacturers Catalog Number: ECI-4 750-2.25C03VF5
Country of Origin: UNITED STATES
