Template AIRMAR TM265C-LM 1kW Low Medium CHIRP Garmin 12-Pin Cable Price: $ 2,287.91

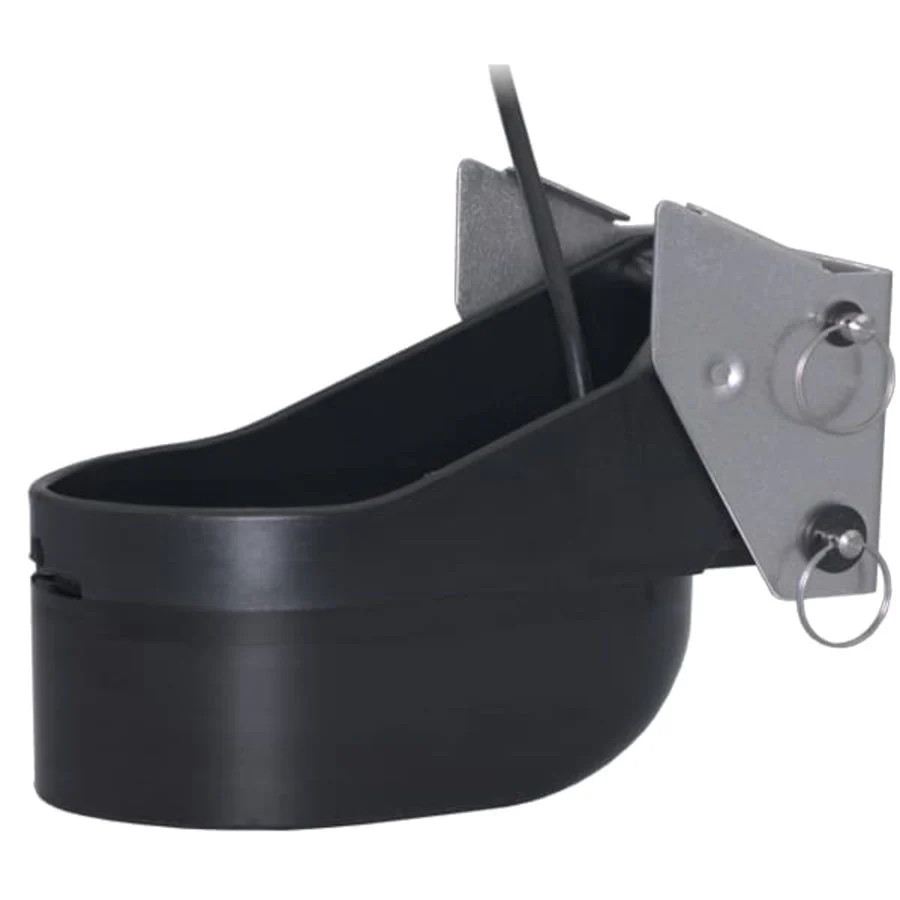

Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Garmin 12-Pin Mix-N-Match Cable
Model: TM265C-LM-12G
- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep to mid-depth performance
- Low frequency: 42 to 65 kHz, 25 deg to 16 deg port-starboard beamwidt, Maximum depth of 914 m (3000 feet)
- Medium frequency: 85 to 135 kHz, 16 deg to 11 deg beamwidth, Maximum depth of 457 m (1500 feet)
- 73 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
- Transom mount stainless steel bracket for installation on boats of all propulsion types
- SEALCASTTM, seamless, urethane housing for long life in the water
- Patented Xducer ID(R) technology
Rely on Airmar\'s new broadband transducers for the ultimate fishing mission! Whether you\'re a commercial fisherman, charter captain, or tournament angler, there\'s a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.
Specifically designed for small boats (25 feet-40 feet), the TM265LH Chirps across the following bandwidths:
LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz
Specifications
Low frequency42-65 kHz (25 deg to 16 deg beamwidth)
Medium Frequency
85-135 kHz (16 deg-11 deg)
Cable-Length
10 m (33 feet)
Housing
Urethane/Stainless Bracket
Mounting Style
Transom
Power Rating
1 kW
Single or Dual Frequency
CHIRP-Ready Dual-Band
Transducer Functions
Depth, Temperature
Transom Angle
3 deg to 21 deg
What\'s in the Box:
- TM265C-LM-MM
- Transom Mount Hardware
- MMC-12G Cable
