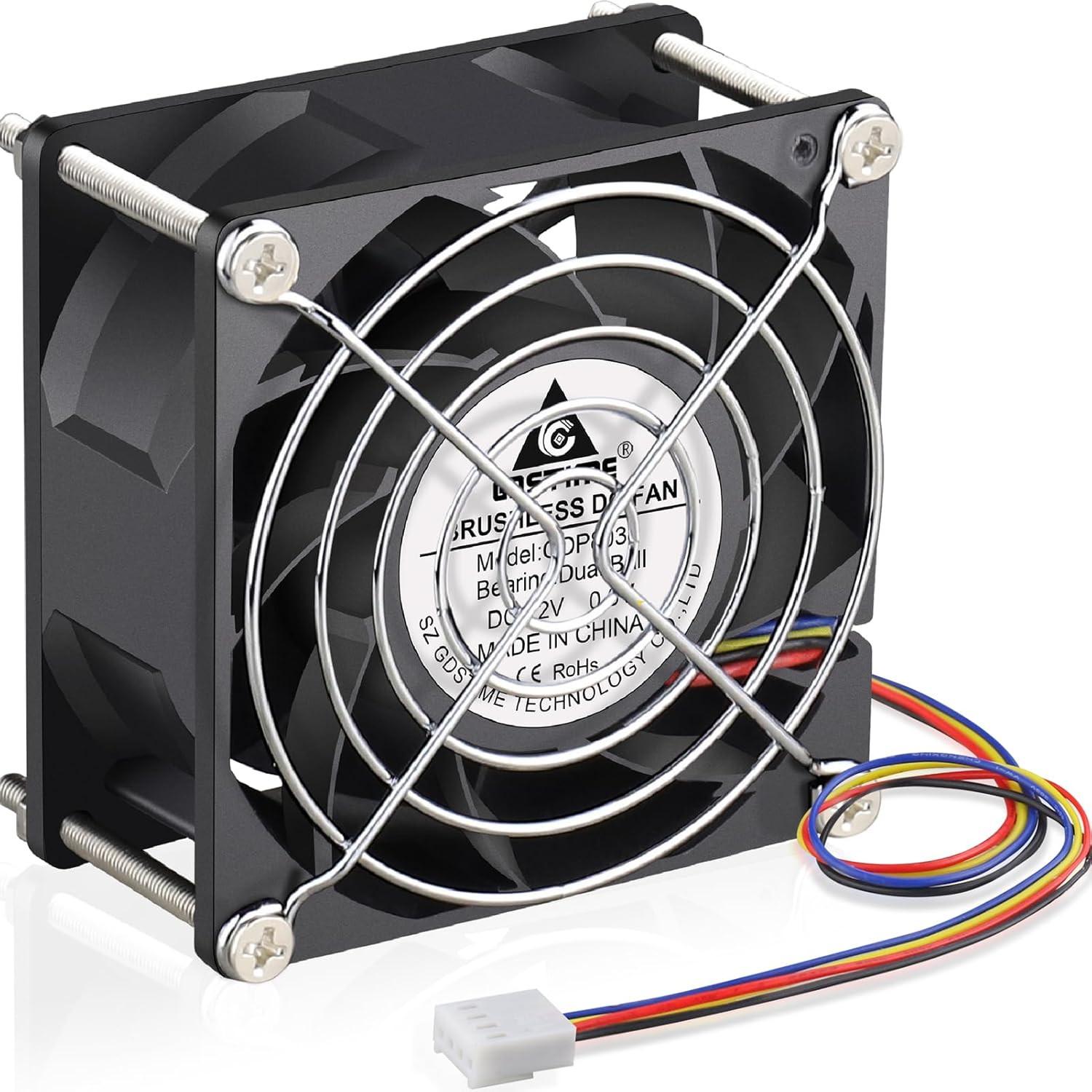

80Mm X 38Mm 8038 PWM 4Pin High Speed Dual Ball Bearing DC 12V 80X80X38Mm PC Comp For Sale

• 【RAPID COOLING】80mm high static pressure fan is suitable for 4U server chassis, inverter, GPU heatsink, solder fume extractor, radiators, etc; or as a replacemment fan for many products
• 【POWERFUL FAN】High wind pressure design to get more concentrated and farther air flow; suitable in applications where need maximized airflow and a louder noise level is bearings rated at up to 50,000hrs; can be mounted flat or upright; Includes a metal fan grill to protect your hands and fan blades
• 【PWM FUNCTION】The fan uses 4-pin interface, with speed regulation (blue wire), speed measurement functions (yellow wire); run at full speed if just red and black wires
• 【DC AXIAL FAN】80x80x38 mm (3.15x3.15x1.5 in.) | Rated Voltage: 12V DC | Current: 0.8A | Power: 8W | Speed: 5800 RPM | Noise: 51dBA | Airflow: 78.9 CFM | Static Pressure: 0.77 In H2O

Product description GDSTIME 80mm x 80mm x 38mm PWM 4-Pin High Static Pressure Fan

This 80MM Static Pressure Fans comes with long life dual ball bearing and 4-Pin PWM connector.The fan generates static pressure of 0.77 In H2O and airflow of 78.9 CFM and has speed of 5800 RPM.This model is designed to maximize airflow and can be too loud for some applications. (51 dBA @ 5800 RPM).

Widely used on Radiators, CPU Coolers, GPU Heatsinks, and on Restricted Spaces

Designed for highly restrictive, high static pressure environments found in telecom, medical and industrial applications,focus air movement to push/pull air through obstacles to cool Radiators, CPU Coolers, GPU, enclosures, cabinets, housings, PC boards, and other high static pressure applications.

Key Features of 80mm by 38mm PWM Fans Dual-Ball Motor

This high static pressure fan comes with Dual-ball bearings that rated at 50,000 hrs allows the fans to be mounted vertically or horizontally. Impedance protected motors and pure copper coil have a high resistance to heat.

Optimised for Static Pressure

This 80x80x38mm fan with Focused Flow Frame and special fan blades for high static pressure and high airfow, These fans are designed to exert maximum air pressure in a focused direction to ensures extremely efficient cooling.

PWM 4 Pin Connector

The 4-pin connector supports automatic motherboard speed control; With PWM function your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not. PWM fans can alter their speed and airflow based on the component\'s temperature.

Powerful Concentrated Air Movement

If you are looking for a computer fan that can push air with a greater force in one direction on a restricted environment then you need a high static pressure fan. the fan blow air reach into all the gaps and openings comfortably and cool down the component or heat source effectively.

Solid and Powerful Fan GDSTIME GDA-8038 PWM Fan Specifications

• Fan Size: 80 x 80 x 38 mm | Rated Volage: 12 VDC
• Bearing Type: Dual Ball Bearing | Lifespan: ＞50,000hrs
• Fan Speed: 700±10% – 5800±10% RPM | Airflow: 78.9 CFM | Noise Level: 51 dBA
• Static Pressure: 0.77 mmH2O | Connector Type: 4-Pin PWM
• you can got roughly 1200 rpm at 10% PWM throttle when CPU is mostly idle; Runs at about 4000 RPM when turned it down to 40%; Get about 5500 RPM at 90% PWM throttle; and up to 5800 RPM at 12v.

• Will this fan run using just the red and black wires?

  Yes, the 80mm pwm fan will run at full speed if just using the Red and Black wires connected to 12 volts DC

• Is this an airflow fan or a static pressure fan?

  These are static pressure fans

• What is the minimum rpm that can be set via pwm?

  down to about 5% duty cycle and still ran 600rpm, this fan have big air flow at full speed (72.6CFM / 5500RPM )

• Does it come with screws long enough to be placed on the front panel?

  This comes with M4x50mm screws 4 each to attach the fan. Also include 80 millimeter metal fan guard

• How long is the wire to the 4-pin connector?

  Approx 30cm / 11.81 inches

GDSTIME PWM 4-Pin Static Pressure Fans Compared Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 214 4.5 out of 5 stars 214 4.5 out of 5 stars 214 4.5 out of 5 stars 214 Price $22.99$22.99 $18.99$18.99 $22.99$22.99 $27.99$27.99 Connector 4-Pin 4-Pin 4-Pin 4-Pin Control Type PWM Control PWM Control PWM Control PWM Control Static Pressure 0.77 In H2O 0.46 In H2O 0.87 In H2O 1.17 In H2O Full Speed 5800 RPM 5000 RPM 5800 RPM 5300 RPM Air Flow 76 CFM 64 CFM 118.84 CFM 213 CFM Noise Level 51 dBA 47 dBA 53 dBA 58 dBA Power 8 Watt 5 Watt 12 Watt 20 Watt Rated Voltage/Current 12V 0.8A 12V 0.45A 12V 1.0A 12V 2.0A Bearings Dual Ball Dual Ball Dual Ball Dual Ball Fan Size 3.15x3.15x1.5 in. (80x80x38mm) 3.15x3.15x1 in. (80x80x25mm) 3.62x3.62x1.5 in. (92x92x38mm) 4.7x4.7x1.5 in. (120x10x38mm)
