8 PCS 6N23P (E88CC / 6922 / 6DJ8) NOS VACUUM TUBES VOSKHOD. MIX. 1960-80\'s.:
$39.00

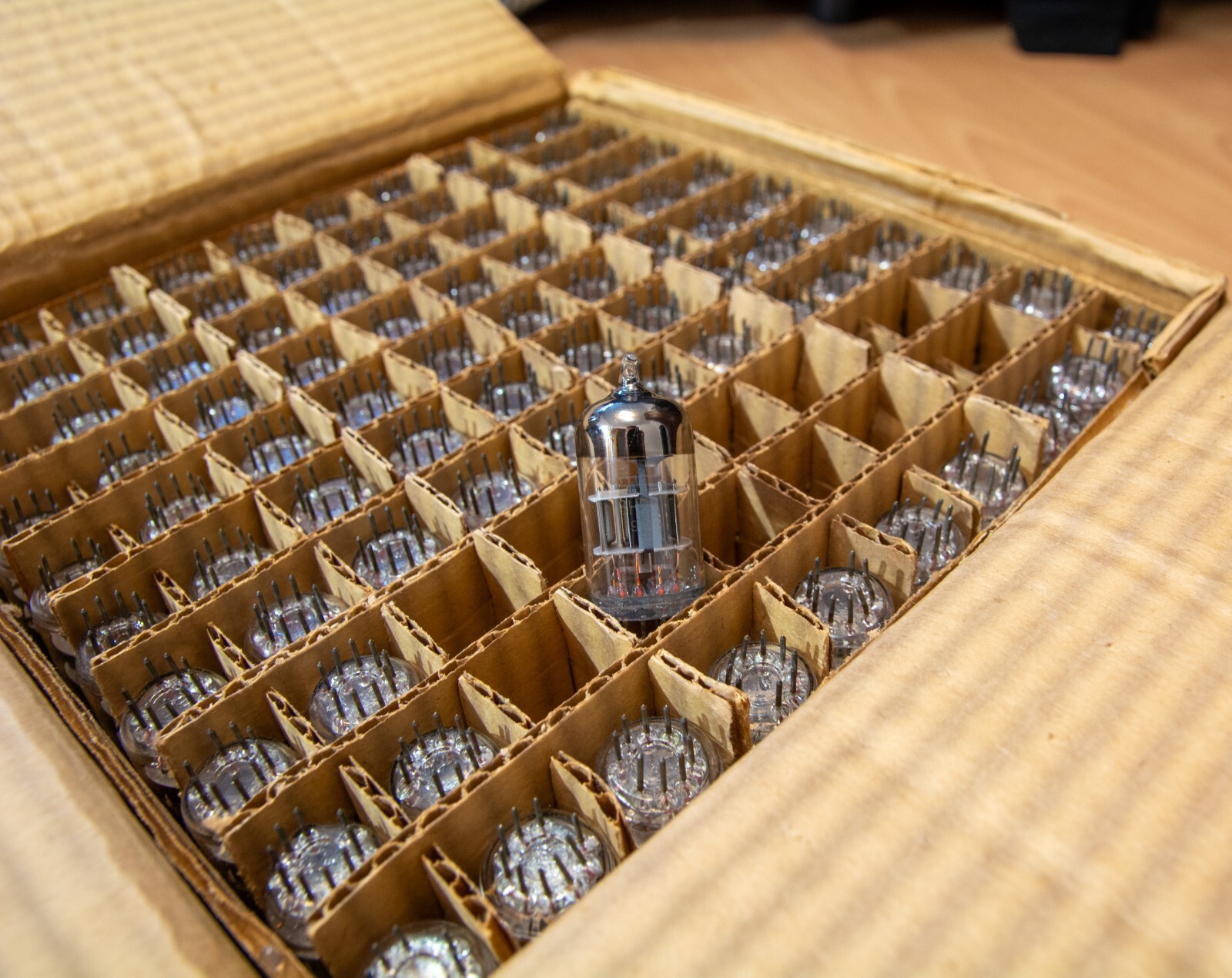

Up for sale8 pcs 6N23P. NOS tubes.Voschod logo on tubes.This lot is mix tubes from1960-80\'s.

Main technical characteristics 6N23P:
Filament voltage 6.3 ± 0.6 V
Heating current 310 ± 25 mA
Anode voltage nominal (constant) 100 V
Anode voltage limit (constant) 300 V
Anode current of each triode 15 mA
The cathode current limit 20 mA
Limit cathode current (pulse amplitude) 200 mA
Grid voltage (constant) 9 V
Limit grid voltage (pulse amplitude) 260 V
The power dissipated by the anode, the maximum 1.8 W
The power dissipated by the grid, the limit of 0.03 W
The voltage between the cathode and the heater limit (constant) -200 V
The steepness of the characteristics of each triode 12.7 mA / V
The gain of each triode is 34 ± 9
Input impedance at 200 MHz 500 Ohm
Equivalent resistance of intra-tube noise 300 Ohm
Resistance in the cathode circuit for automatic bias of 680 Ohms
Resistance in the grid circuit limit 1 MΩ
Input capacitance of each triode 3.6 pF
Output capacity of the first triode 2.1 pF
Output capacitance of the second triode 1.9 pF
Capacity through passage of each triode 1,5 pF
The capacity of the anode - the cathode of each triode is 0.18 pF
The capacity between the anodes is not more than 0.06 pF
Capacity between grids no more than 0,005 pF
Making a glass miniature
