65" 4K UHD Interactive Smart Whiteboard | Touch Screen Smartboard w/ Wall Mount For Sale

Interactive Whiteboard, 65" 4K UHD Smart Touch Screen
Perfect for classrooms, meetings, and collaborative spaces.
Includes wall mount and all standard accessories.
Local pickup or Buyer pay LTL – Westwood, NJ.

Condition
Excellent condition (New/Open Box). Never used. Please review all photos and details carefully.

Shipping
Local pickup preferred. Shipping (if offered) via LTL to the confirmed address.
Rates apply to the contiguous U.S. only.

Terms of Sale

• Photos represent the item and may not show all details.

• No manufacturer warranty unless stated.

• Orders may be canceled if buyer information cannot be verified.

Returns
No Returns

Shop with Confidence!
Honest Seller • Quality Products • Fast Shipping

Description

1. Innovative improvement in air touch (sensor to glass spacing 1.5 mm): Not only reducing bezel width from front view, but also dramatically reducing air touch more than 70% (sensor to glass : from 5 mm to 1.5 mm), it provides superior touch performance and experiences of smooth pen-on-paper writing without script-lag

2. Fast touch response: Fast touch response and speed (does not generate Time Lagging issues as seen in conventional IR)

3. Pen tip diameter Φ3↑ (General IR pen: Φ8): Pen tip diameter, used to be 8 mm in conventional IR, now is reduced to 3 mm for very fine and accurate writing

4. Slim bezel design

5. 16 Watt x 2 (L/R)

6. Android version 9.0 (MEDIATEK MTK9950)

7. Max. 20 touch points on Android: Not only for Windows, but also for Android, Max. 20 touch points are supported

8. Able to change source name

9. Email sending: The contents saved on the whiteboard can be delivered through email (up to 50 email address) and the email addresses can be saved.

10. DICOM (Digital Imaging & Communications in Medicine) Curve: With improvement of picture quality, especially adjusting luminance, DICOM(Digital Imaging & Communications in Medicine) Curve embedded into product and this feature helps and can be used for medical meetings & seminars

11. Eye protection function for users: If eye protection is selected and user starts to write, brightness is automatically adjusted(to less bright) andwhen user stop writing, then brightness automatically back up to the original level

12. WOL (Wake On Lan): IFPD can be turned on through LAN

13. Dual WiFi (2.4G-WIFI + 5G-AP): IFPD easily gets connected to internet as well as various devices linked

14. Power on/off time setting

15. Touch on/off button: With the button on front bottom, a user can simply use IFPD with touch or non-touch Monitor. In case button pushed

for non-touch, display show “LOCK” image

16. QR code: QR code makes it easy to transfer images on whiteboard to smart phones

17. Self diagnosis: can self-diagnose whether the system has any defects or not

18. Presentation support on remote control: user can move forward or backward presentation materials

19. FOTA (Firmware Over The Air)

20. PBP (Picture By Picture): PBP function separates the screen in 4 or 2 split displaying from different source devices that are connected to IFPD.

If there are 4 in put source signals, there can be 4 split displaying.

It is displayed on each split displaying from the source above. The resolution of the split displaying is FHD and top left displaying on the PBP 4 split displaying and left displaying on the 2 split displaying is the main source that can be played in video and the others are in image.

21. OPS network on (Automatic): When the IFPD is turned on, OPS automatically can be turned on When RJ45 cable is connected to the LAN port of the IFPD, OPS is also automatically connected to the same network.

22. Auto light system: The brightness of IFPD can be automatically adjusted according to the ambient light with the illumination sensor so the user can save energy.

23. Floating menu settings: The user can select 4 system utils or applications the user want and use them quickly.

24. Adding application on HOME: You can add 7 applications or sources on HOME to use them frequently and conveniently. Applications or sources can be added with + icon and can be deleted easily.

25. Dual pen function on whiteboard: IFPD recognizes the thickness of the stylish pen so that the user can use thin pen stylish pen and thick stylish pen at the same time with different color.

26. Backlighting adjustment and firmware update using power button: The backlighting can be adjusted when the power button is on and pressed shortly.

The firmware can be updated when the power button is off and is pressed for approximately 4 seconds.

27. HDMI OUT (2K & 4K): You can connect the HDMI cable between IFPD HDMI output port and HDMI input port of any display device like TV or monitor

so that you can see the same resolution image of IFPD on the display device.

28. Year / month /date settings on HOME

29. EShare Pro for mirroring, reverse touch: EShare Pro allows users to simply mirror IFPD to peripherals in the same Wi-Fi and also, peripherals do mirror to IFPD including touch functionalities

30. Compatible with video conferencing software, Zoom, MS Teams,

Google Meet

31. OneDrive file storage

32. E-user manual: Without internet connection user can open the user’s manual.

When the language changes, the language of user’s manual change as well. (English and Korean, Japanese only)

Specifications

DISPLAY

• Active Screen Size: 64.53 inches(1639.062 mm)

• Active Display Area: 1428.48mm * 803.52 mm

• Aspect Ratio: 16 : 9

• Pixel Format: 3840×2160

• Pixel Pitch: 0.372 mm x 0.372 mm

• Contrast Ratio: 1300:1 (Typ)

• Color Depth: 10-bit(D), 1.07 Billion colors

• Viewing Angle (CR>10): ( R/L 178 (Min.), U/D 178 (Min.)

• Brightness (with cover glass, 9 point mean): 350cd/㎡↑

• BLU LED Type: D-LED type

TOUCH SENSOR

• Touch Technology: Ultra Slim IR (Infrared)

• Detect Area: 1465.3 bottom (H) 1460.3 top x 843.85(V) mm

• Touch Point: 20 points (Windows)20 Points (Android, Max.)2 Points (Mac with driver software)

• Touch Tool: Hand or other Solid Object ( Pen tip > Φ2.0mm)

• Driver: Plug-and-Play Compatible

• Communication: USB+ I2C

• Calculate: Auto

• Resolution: 32768×32768

• Response Speed: <10 ms ( 1 Touch )

• Accuracy: +/- 1 mm

• Touch Times: Non-Limited

• Operation System: Windows 7,8,10 /Mac 10.10-10.15

ANDROID

• Main Chip: MEDIATEK-MTK9950

• CPU: Cortex A73*4 Main Maximum frequency 1.8GHz

• GPU: MaliG52*4

• RAM: 5G bytes LDDR4/3504Mbps

• Fiash: 32GBytes EMMC5.1 nand flash

• Kernel Version: 4.9.44+

• Android Version: 9.0

IN & OUT (CONNECTIVITY)

• Front Panel Terminals: USB-B (For Touch) x 1, HDMI 2.0 x 1, USB-C x 1, USB-A x 3(3.0)

• Input Terminals: Camera USB(2.0) x 1, Mic In x 1, VGA x 1, PC Audio-In(3.5mm) x 1, LAN(RJ45) x 1,HDMI(2.0) x 4 (1 for OPS), DP1.2a x 1, USB-A x 1(2.0)_Android,USB-A x 2(3.0), USB-B (For Touch) x 1, AV x 1

• Output: HDMI x 1, AUDIO x 1, S/PDIF x 1

• Communication Terminals: RJ45 In x 1 , RS232 x 1(D-SUB9)

OPS

• OPS: OPS Slot Only ( Intel Standard)

WiFi & BT CONNECTION

• WiFi Module Type: IEEE 802.11 a/b/g/n/ac 2T/2R Dual Band USB Combo Module, Integrated Bluetooth V2.1/3.0/4.2/5.1

FRONT GLASS

• Thickness: D = 4.0mm

• Transmittance: 88±3%

• Surface Treatment: one side AG(Anti-Glare) Coating , AF (Anti-Finger) Coating

OTHERS

• Front Panel Button: Power On/Off, 7-Function key for Source, Menu, Volume Up/Down, Menu Left/Right, Touch On/Off

• OSD Control Function: RS232C, IR Remote controller

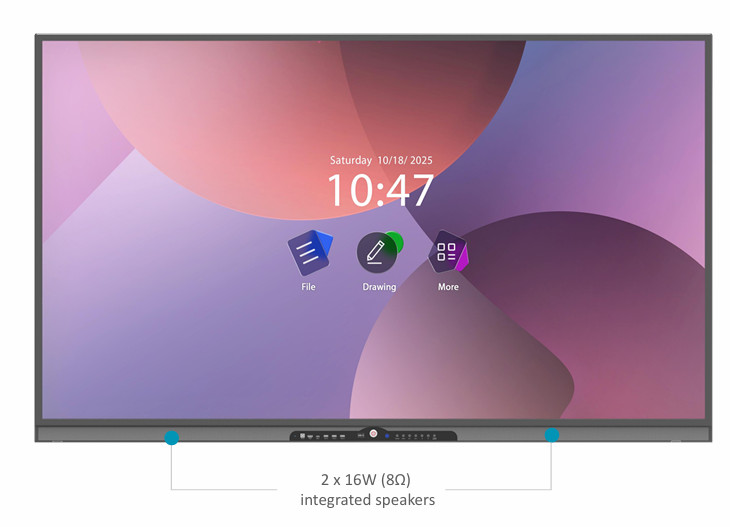

• Audio Power: 2*16W(8Ω/0.5Vrms distortion) <7%/24V, Generic, Standard Speaker

• Safety Standard: CB, CE, FCC, NRTL, KC, RoHS

• Power Supply: AC100-240V 50/60 Hz,

Standby Power: Consumption(AC240V 50Hz ,30mA) ≤ 0.5 W,

Total ≤ 260W

• Frame Type: Aluminum Frame (Black)

• Operating Temperature: 0 ~ 40ºC, 20% to 80% RH (no condensation)

• Storage Temperature: - 20 ~ 60º C

• Unit Dimension（L*W*D): 1491 x 913 x 93 mm (± 5mm)

• Carton（L*W*D): 1613 x 1050 x 220 mm (± 5mm)

• VESA Mount: 500 x 400 (mm), M8 Screw

• Net Weight: 41 Kg (± 2.5 Kg)

• Gross Weight: 49 Kg (± 2.5 Kg)

WHAT IS INCLUDED?

AC cord (1.8 m), HDMI cable (3 m), USB cable(3 m), Remote controller, Pen (2ea)
