【Fitment】
【Replacement】
【Function】
【Superior Material】
Instruction
1. Position the antipolishing ring on the top of the cylinder liner counterbore. Align ring so it sitssquarely on top of the counterbore.
2. Install the cylinder liner puller plate, in the center of the antipolishing ring.
3. Install the cylinder liner puller plate with the bottom facing up for proper seating and alignment.
4. Install the cylinder liner installation tool, Part Number 3164606, over the antipolishing ring andpuller plate.
5. Thread the installation tool down slowly, pressing the antipolishing ring into the liner counterbore.
6. If the antipolishing ring severely misaligns while pressing it into place, stop the installation processand inspect for damage.
7. If both the liner and antipolising ring are undamaged, repeat the above steps.

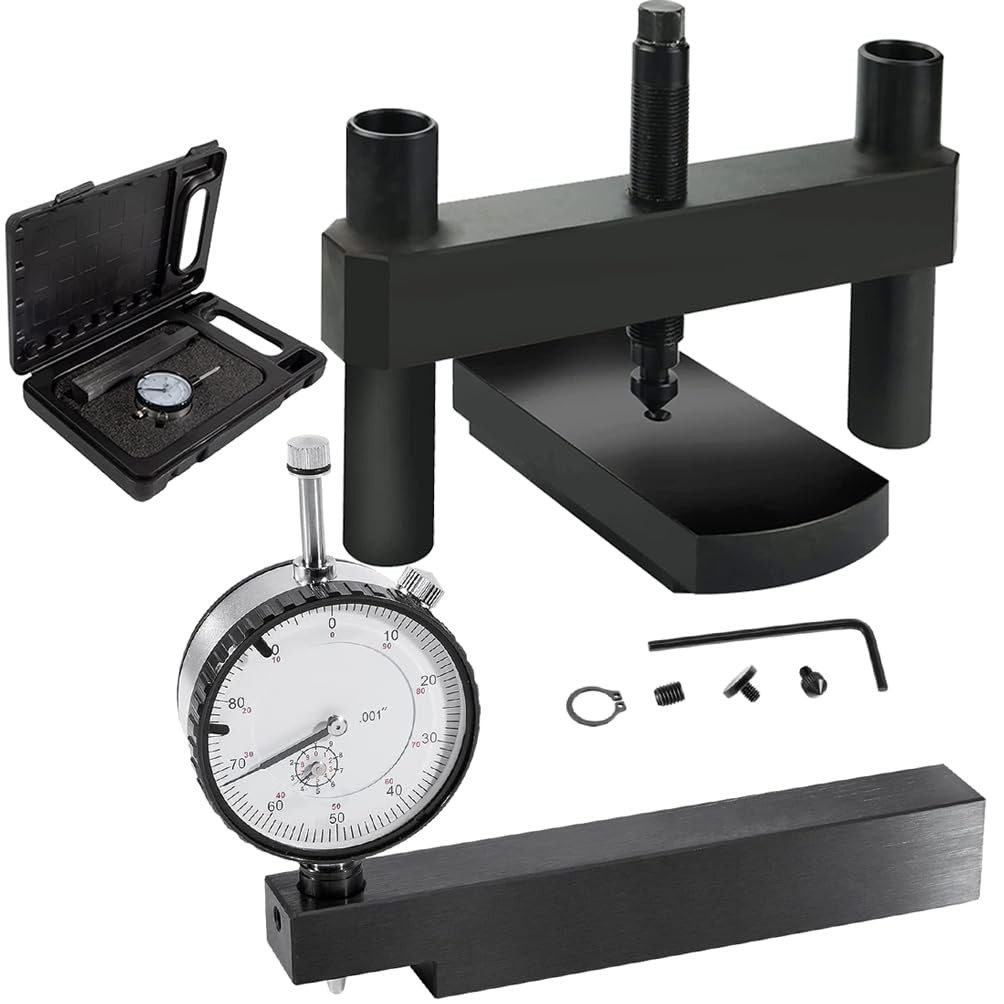

1x 3164606 Cylinder Liner Press Installer Tool
1x 6434 Sleeve Height Counter Bore Gauge
