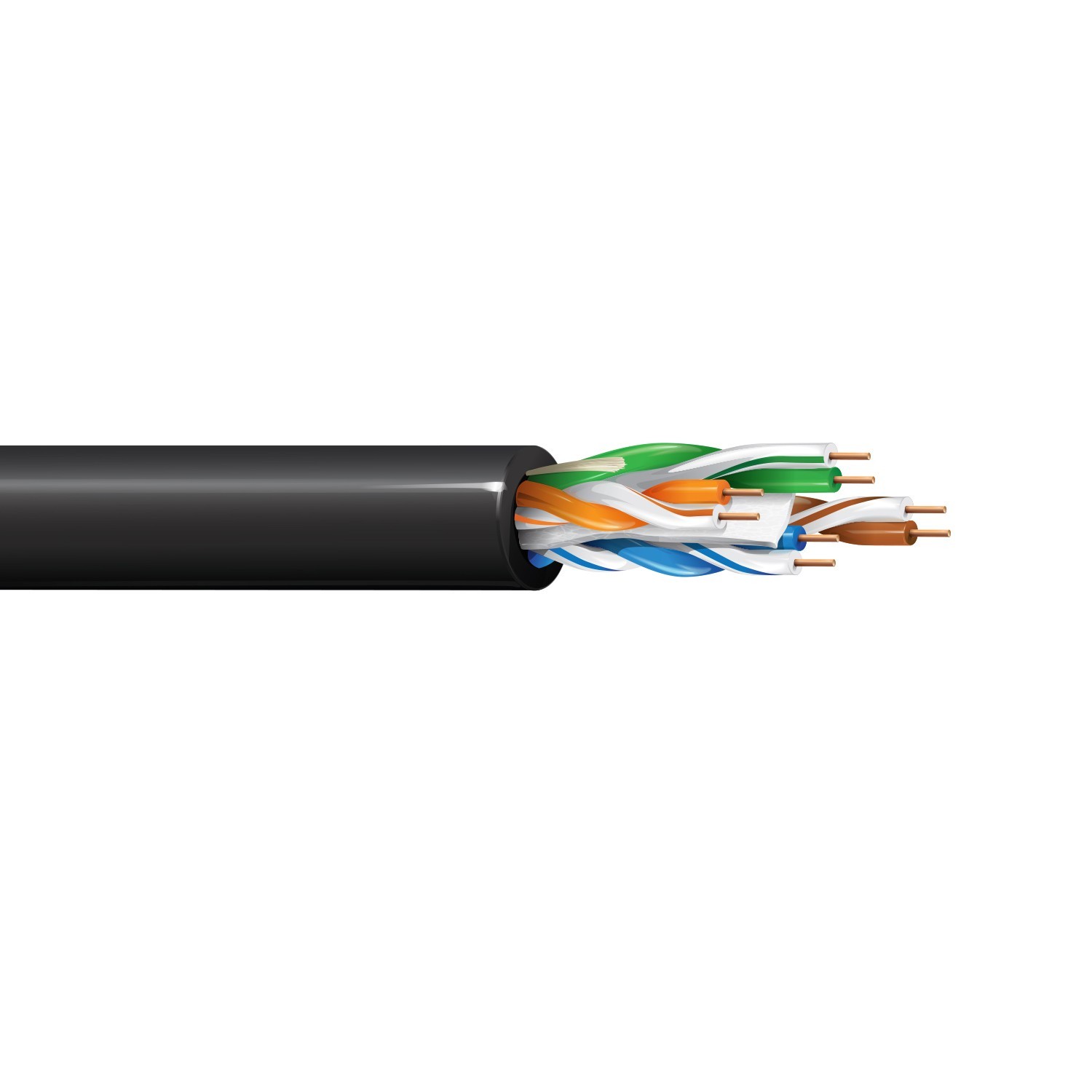

500' Belden 2146A 23 AWG 4 Pair Category 6 Premise Horizontal Cable 300V Click Thumbnails to EnlargeDESCRIPTION
• Belden 2146A 23 AWG 4 Pair Category 6 Premise Horizontal Cable 300V
APPLICATION
• Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE
CONDUCTOR
• Bare Copper
INSULATION
• Polyolefin (PO)
JACKET
• Polyvinyl Chloride (PVC)
TEMPERATURE RATING
• Operating Temperature: -40°C to +75°C
STANDARDS
• Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire
• Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
• Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEEE 1202 Vertical Tray Flame Test
• CPR Compliance: CPR Euroclass: Fca; CPR UKCA Class: Fca
• NEC / UL Compliance: Article 800, CMR, CMX-Outdoor, CMG
• CEC / C(UL) Compliance: CMX-Outdoor; CMG
• ICEA Compliance: S-116-732, S-56-434, S-99-689, S-100-685
• IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
• NEMA Compliance: ANSI/NEMA WC-66
• Data Category: Category 6
• TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6
• Third Party Performance Verification: Category 6
• ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
• CENELEC Compliance: Segregation class according EN50174-2 = a
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)
PRODUCT SPECIFICATIONSSize AWG 23Number of Pairs 4Conductor Stranding SolidOverall Diameter (inch)0.255Weight (lbs/1000ft)29
