Blue
Silent Oil-Free Air Compressor for Dental Use
Product Overview
This oil-free air compressor is designed for dental applications, delivering clean, quiet, and reliable performance. Its advanced features include anti-rust and anti-microbial interior tank coating, ultra-low noise operation, and durable continuous-run capability.
Key Features
Clean Air Assurance:
Oil-free operation with anti-rust and anti-microbial interior tank coating.
Low Noise Design:
Optional silent cabinet reduces noise to just 50dB+(A).
Long Service Life:
Engineered for continuous operation with stable airflow output.
Components List
1.Host Unit
2.Air Tank
3.Emergency Stop Switch (Red Mushroom)
4.Motor Start Switch Equipment Control Box
5.Solenoid Valve
6.Pressure Gauge
7.Safety Valve
8.Compressed Air Output Valve
9.Wastewater & Exhaust Discharge Valve
Operation & Maintenance Guidelines
The air compressor automatically stops filling when the air pressure in the tank reaches 0.8 MPa, During product use, when the pressure drops to 0.5MPa, the machine will automatically restart and continue operating until the pressure returns to 0.8 MPa. This cycle repeats automatically.
�� Emergency Stop Button
Press the red button to immediately stop the machine in emergencies.
Pull the button upward to reset after resolving the issue.
��️ Air Filter Maintenance
Clean the filter regularly to prevent dust entry and maintain suction efficiency.
Rinse the sound-damping sponge every 30-60days.
�� Tank Drainage
Drain accumulated water every 3-5days to maintain tank integrity.
⏱️ Inflation Time Test
Recommended frequency: Monthly
Procedure:
1.Turn off power.
2.Open drain and air outlet valves.
3.Close both valves.
4.Restart the machine and record the time to reach shutoff pressure.
Note:
Normal inflation time: 3–4 minutes.
If exceeding 5 minutes, contact after-sales service.
24L

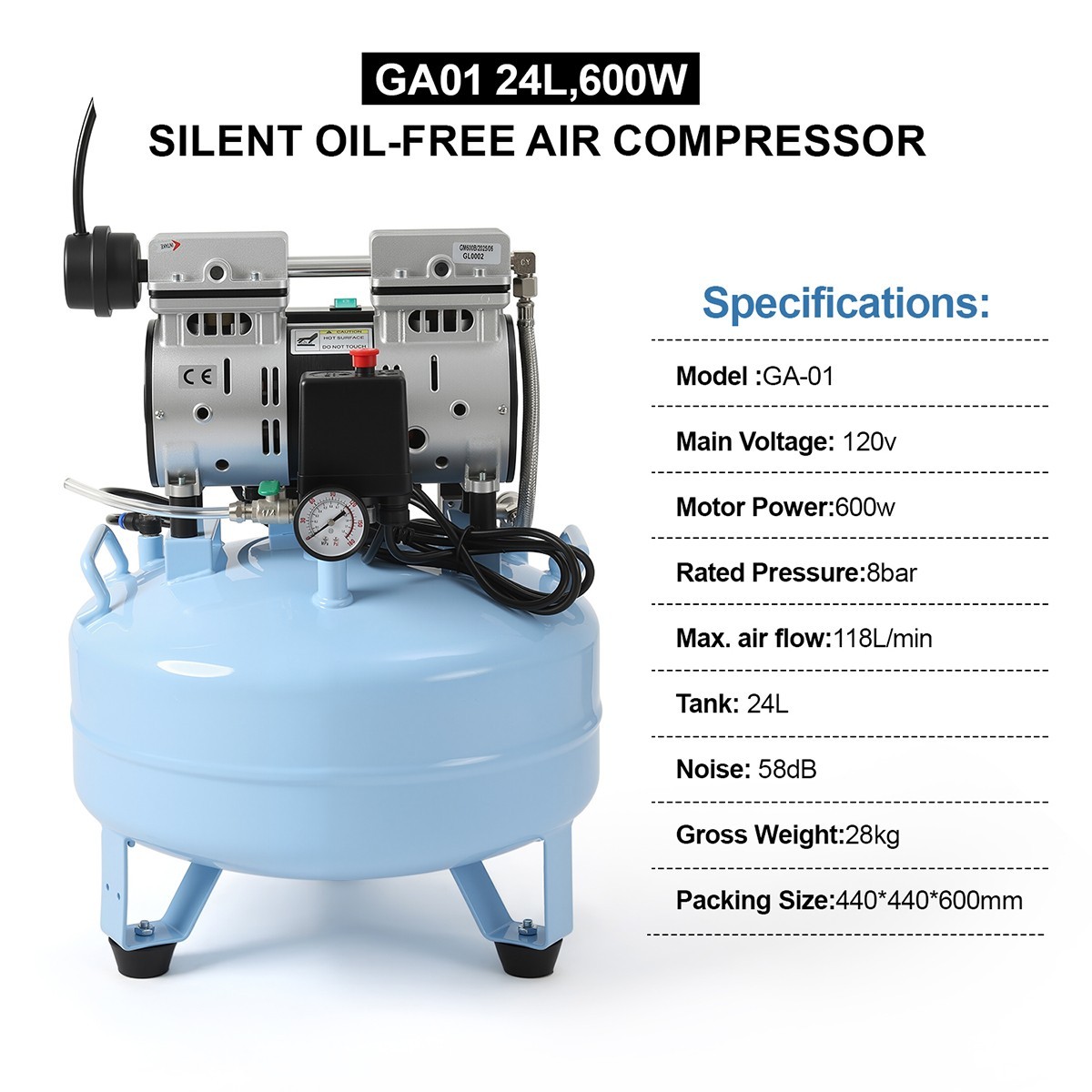

Model: GA01 24L, 600W
Specification Value
Voltage 120V
Motor Power 600W
Rated Pressure 8 bar
Max. Air Flow 118 L/min
Tank Capacity 24 L
Noise Level 58 dB
Gross Weight 28 kg
Packing Size 440×440×600 mm
40L
Model: GA0240L, 800W
Specification Value
Voltage 120V
Motor Power 800W
Rated Pressure 8 bar
Max. Air Flow 155L/min
Tank Capacity 40L
Noise Level 58 dB
Gross Weight 32kg
Packing Size 440×440×685mm
Gray
Product Overview
This oil-free air compressor is designed for dental applications, delivering clean, quiet, and reliable performance. Its advanced features include anti-rust and anti-microbial interior tank coating, ultra-low noise operation, and durable continuous-run capability.
Key Features
Clean Air Assurance:
Oil-free operation with anti-rust and anti-microbial interior tank coating.
Low Noise Design:
Optional silent cabinet reduces noise to just 50dB+(A).
Long Service Life:
Engineered for continuous operation with stable airflow output.
DUAL-PRESSURE DISPLAYMonitors tank pressure and lets you control the output in real-time
Operation & Maintenance Guidelines
The air compressor automatically stops filling when the air pressure in the tank reaches 0.8 MPa, During product use, when the pressure drops to 0.5MPa, the machine will automatically restart and continue operating until the pressure returns to 0.8 MPa. This cycle repeats automatically.
��Emergency Stop Button
Press the red button to immediately stop the machine in emergencies.
Pull the button upward to reset after resolving the issue.
��️ Air Filter Maintenance
Clean the filter regularly to prevent dust entry and maintain suction efficiency.
Rinse the sound-damping sponge every 30-60days.
��Tank Drainage
Drain accumulated water every 3-5days to maintain tank integrity.
⏱️ Inflation Time Test
Recommended frequency: Monthly
Procedure:
1.Turn off power.
2.Open drain and air outlet valves.
3.Close both valves.
4.Restart the machine and record the time to reach shutoff pressure.
Note:
Normal inflation time: 3–4 minutes.
If exceeding 5 minutes, contact after-sales service.
24L
Model: GA01PLUS24L, 600W
SpecificationValue
Voltage120V
Motor Power600W
Rated Pressure8 bar
Max. Air Flow118 L/min
Tank Capacity24 L
Noise Level58 dB
Gross Weight28 kg
Packing Size440×440×600 mm
Components List
1.Host Unit
2.Air Tank
3.Emergency Stop Switch (Red Mushroom)
4.Motor Start Switch Equipment Control Box
5.Solenoid Valve
6.Pressure Gauge*2
7.Safety Valve
8.Compressed Air Output Valve
9.Wastewater & Exhaust Discharge Valve
40L
Model: GA02PLUS40L,800W
SpecificationValue
Voltage120V
Motor Power800W
Rated Pressure8 bar
Max. Air Flow155L/min
Tank Capacity40L
Noise Level58 dB
Gross Weight32kg
Packing Size440×440×685mm
Components List
1.Host Unit
2.Air Tank
3.Emergency Stop Switch (Red Mushroom)
4.Motor Start Switch Equipment Control Box
5.Solenoid Valve
6.Pressure Gauge
7.Safety Valve
8.Compressed Air Output Valve
9.Wastewater & Exhaust Discharge Valve
