4 (Four) New 100MHZ Oscilloscope probes for Oscilloscope scope, 1X/10X + accessories
FAST Shipping from USA

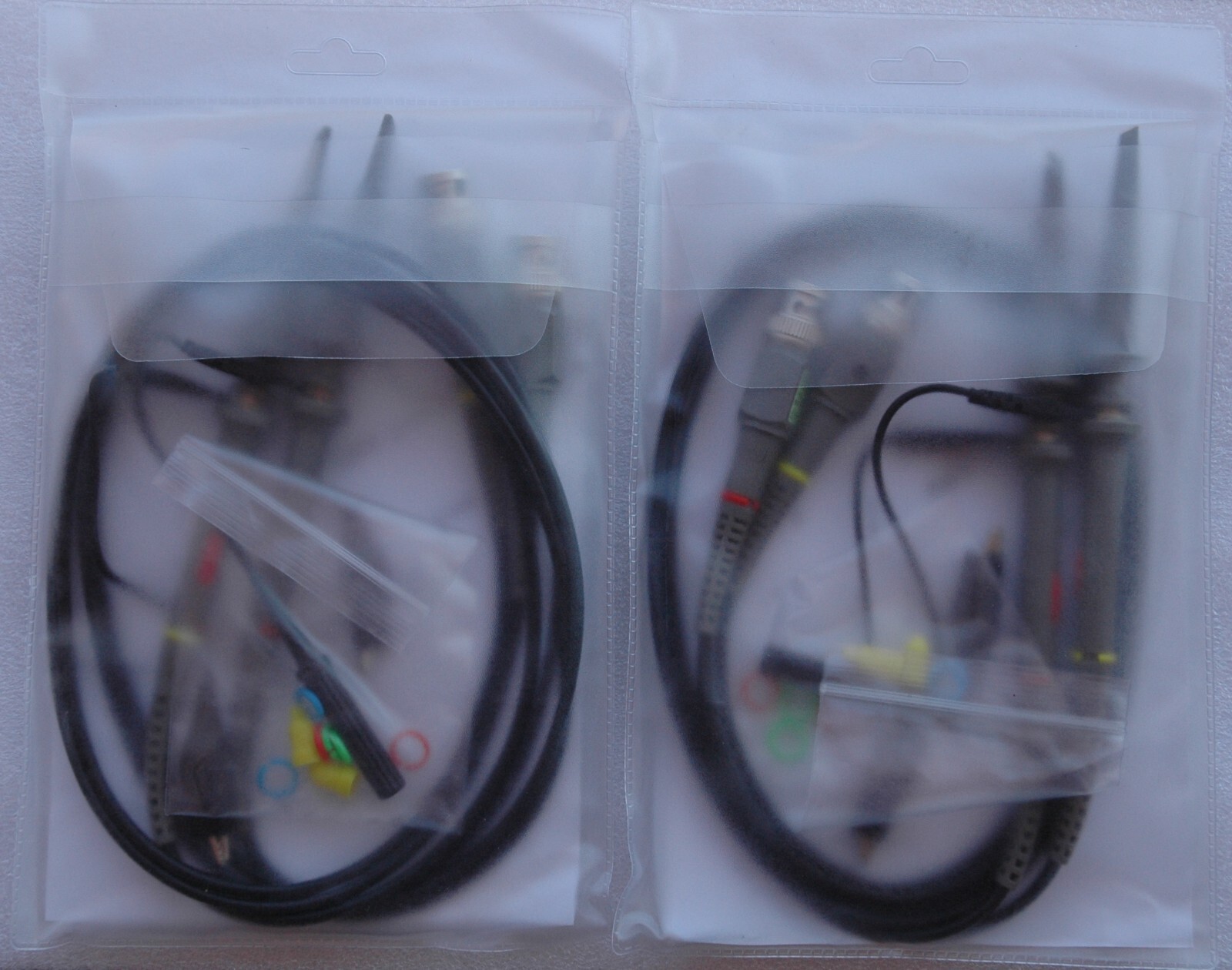

You will receive FOUR (2 pair) probes. Some pictures show one pair just for you to see the probe clearly. You will receive TWO exact package for total of FOUR probes.
P6100 Series Probes
- General Purpose, Bench or Field
- Economical, Yet High Quality
- High InputImpedance(X10 range)
- Compensation (X10 range)
Features:
- Usablewith scopes having Bandwidth up to100 MHz
- Interchangeable Probe Tip
- Coaxial Reed Switch
- Modular Construction
- Compensation range: 10 to35 pF
- Input Capacitance: 1X: 85pF-135pF; 10X: 16pF-20pF
- Input Resistance: 1X: 1Mohm; 10X: 10Mohm;
- Bandwidth: 1X: DC-6MHZ, 10X: 100MHz
- Attenuation Ration: 1:10
- Net Weight: 64g
- Cable Length: 120cm
- Operating Temp: -10C-+50C
- OperatingHumidity: <=85%
- Maximum Input Voltage:1X: 300 VDC+Peak AC, 10X: 600 VDC+Peak AC
The retail package includes:
1)Two 100MHZ Oscilloscope probeswithMini Alligator Clip and ground lead;
2) 1 Screwdrivers;
3) 6 marker bands;
4) 2 tip locating sleeves.
5) Manual
Guarantee Terms:
This item is guaranteed to work & has no known functional Issues. If the item does not as descripted or is functionality defective, you will qualify for a refund. In such a case, you must contact me within 30 days.Thanks for looking!
