4* Air Brake Chamber 30/30 Long Stroke 3\" 76mm Replaces For Bendix HDX1373030215

Application：
For Haldex: GC3030LCW
For Bendix: NT3030ELS-WC
For Freightliner: HDX1373030215
For Others: BTS-3030LS-WCR, number：
GC3030LCW,
NT3030ELS-WC,
HDX1373030215,
BTS-3030LS-WCR,
GTA-3030LS-WCR,
NT3030ELSWC,
BTS3030LSWCR,
GTA3030LSWCR

Specification：
Condition: New
Actuator Type Siz: 3030
Stroke Type: Long
Available Stroke: 3\", 76mm
Length from mounting bracket to the end of Spring Housing: 9-7/8\", 251mm
Length of Piggyback: 7-3/8\", 187mm
Dimension at rolled Spring Housing flange: 8-5/16\", 211mm
Dimension at Service Clampband: 10-3/16\", 259mm
Pushrod Length from the face of Service Housing: 1\"
Distance to Clevis Pin centerline from the face of Service Housing: 2-1/4\"
Weight: 21.9 lbs. , 9.9 kg.
Packaging Type: Box
Fitment Type: Direct High-Quality Torque Long Stroke Air Brake Chamber Type 3030
- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake Includes:

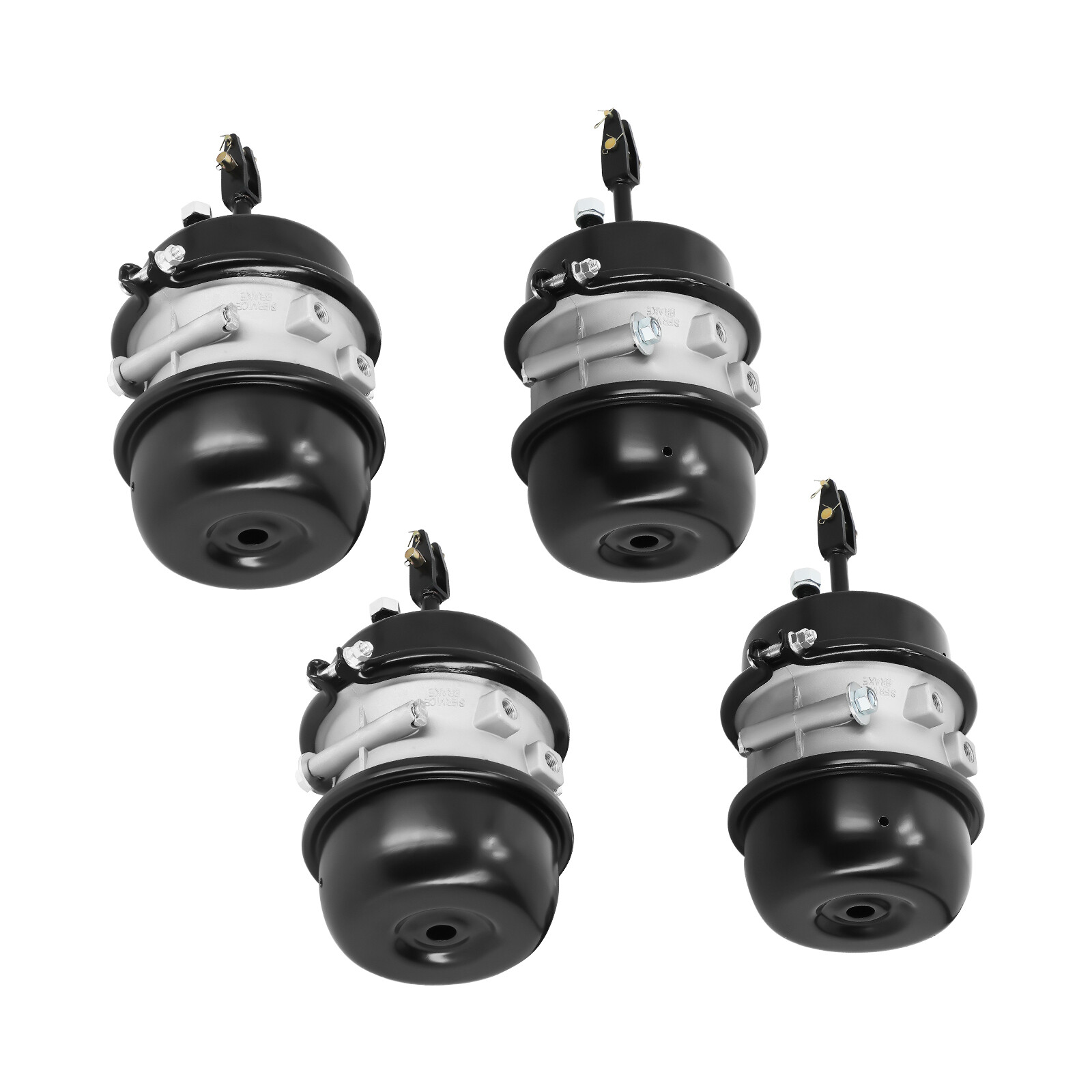

4 x Air Brake Chamber (Showing as the picture)

Note：
●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●.
