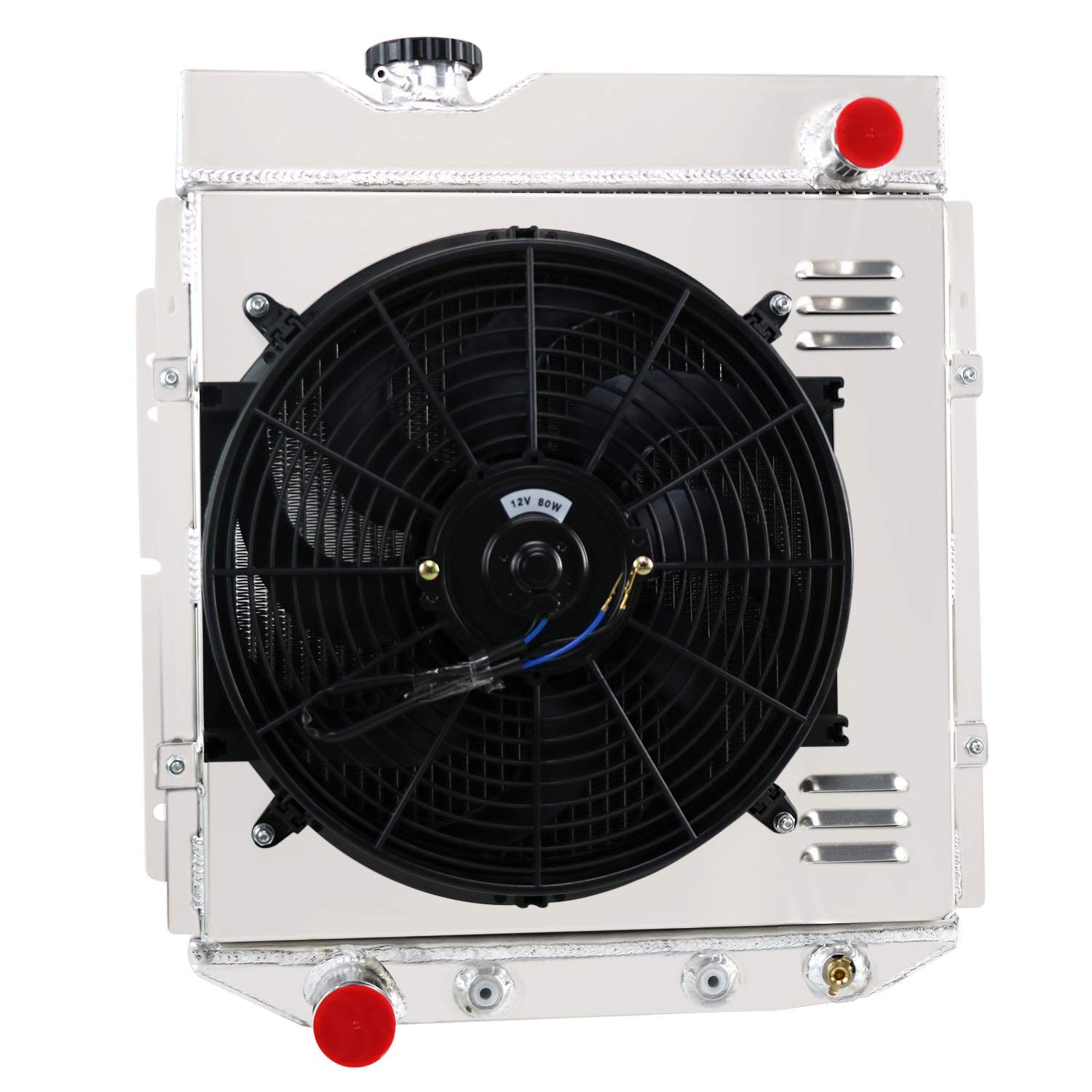

3 Row Radiator+Shroud Fan Replacement for Ford Falcon/Ranchero 1960-65/Mustang 65-1966 High Performance Radiator
About this item
1、【Fitment】For Ford Falcon/Ranchero 1960-1965; For Ford Econoline/Mercury Comet 1961-1965; For Ford Mustang 1965-1966; For V8 Engine swap ONLY; Engine applications: 5.0L, 302ci, 351ci, 390ci, 428ci, & 429ci V8 ONLY.
2、【Specification】This Radiator Size: 3-Row of tubes Core Racing suitable; Core Material: AA5052 Aluminum; Tank Material: AA5052 Aircraft Grade Aluminum; Surface Finish: AA5052 Aircraft Grade Raw Aluminum; Includes CNC machined filler neck and cap; Core Dimensions: 16-1/2\" High x 17\" Wide; Overall Dimensions: 21-3/4\" High x 19-5/8\" Wide; Upper INLET: 1-1/2\" located on the Passenger side. Lower OUTLET: 1-3/4\" located on Driver side. Mounting System: Bracket; Transmission Oil 14\" FAN & SHROUD】 80W 8-blade S-type reversible fan (2250CFM, 2000±10% RPM), pull/push suitable for maximum airflow, paired with aluminum shroud for efficient heat evacuation.
4、【 DURABLE TIG-WELDED CONSTRUCTION】Fully TIG-welded aluminum structure without epoxy bonding for added structural integrity. Pressure-tested prior to shipment. Packaged in reinforced cartons with internal shock-absorbing protection to help minimize transit damage.
5、【NO LEAKAGE WORRIES】Perfect Drop-In Fit. welded by TIG, No Epoxy. Pressure tested to prevent leakage. Thickened carton packaging with internal shock-absorbing suitable.
Product Description
Application: For Ford Falcon/Ranchero 1960-1965 For Ford Econoline/Mercury Comet 1961-1965 For Ford Mustang 1965-1966 For V8 Engine swap ONLY Engine applications: 5.0L, 302ci, 351ci, 390ci, 428ci, & 429ci V8 ONLY This Radiator Size: High Performance Racing Spec. 3-Row of tubes Core Racing suitable Core Material: AA5052 Aluminum Tank Material: AA5052 Aircraft Grade Aluminum Surface Finish: AA5052 Aircraft Grade Raw Aluminum Includes CNC machined filler neck and cap Core Dimensions: 16-1/2\" High x 17\" Wide Overall Dimensions: 21-3/4\" High x 19-5/8\" Wide Upper INLET: 1-1/2\" located on the Passenger side. Lower OUTLET: 1-3/4\" located on Driver side. Mounting System: Bracket Transmission Oil Style Brass Petcock Drain Please Check the Size Before You Buy! Fan Specification: Diameter : 14\'\' (Blade to Blade) Voltage: DC 12 Volts Wattage: 80W Number of Blades: 8 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 2250cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Fan Thickness: 2.64\" S-Type Blade pull push suitable, to make air flow more efficient and bring more cooling Effect Powerful 80 watt motor will keep your engine cool. Description: This AA5052 Aluminum Radiator is suited to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin suitable that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
