2PCS 12V Linear Actuators DC Motor +Forward Reverse Control Kits +Mount BracketsProduct DescriptionLinear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.2PCS 12V Linear Actuators Motor+Forward Reverse Control Kits+Brackets
Here for sale is DC 12V Dual Linear Actuator System Kit, It comes with 4PCS Mounting Brackets&1 Set of Wireless Remote Control Kits for easy installation and convenient operation.
The wireless remote control kit can control the 2PCS linear actuators at the same time.The control kit comes with 2PCS remotes which are very small in size, convenient for operation.
We have paired the 2PCS linear actuators and can guarantee 95%
synchronization for them.
Note 1: The battery in the photo is only for reference and is not included in the package.
Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 5A.
Note 3: If there is no reaction after correct wiring, pls try to exchange the positive and negative pole of the power cord.
* 2PCS DC 12V Linear Actuators.(Stroke and Speed is AT YOUR OPTION)
*1PCS Motor Controller Box.
*2PCS Wireless Remote Control.
* 4PCSMounting BracketsW/ 4PCSbolt and 4PCS cotter pinfor the linear actuators.
Notes: Pls check each mode carefully and choose the right mode as you need!
Stroke Length
2"
4"
6"
8"
10"
12"
14"
16"
18"
Stroke Length
50mm
100mm
150mm
200mm
250mm
300mm
350mm
400mm
450mm

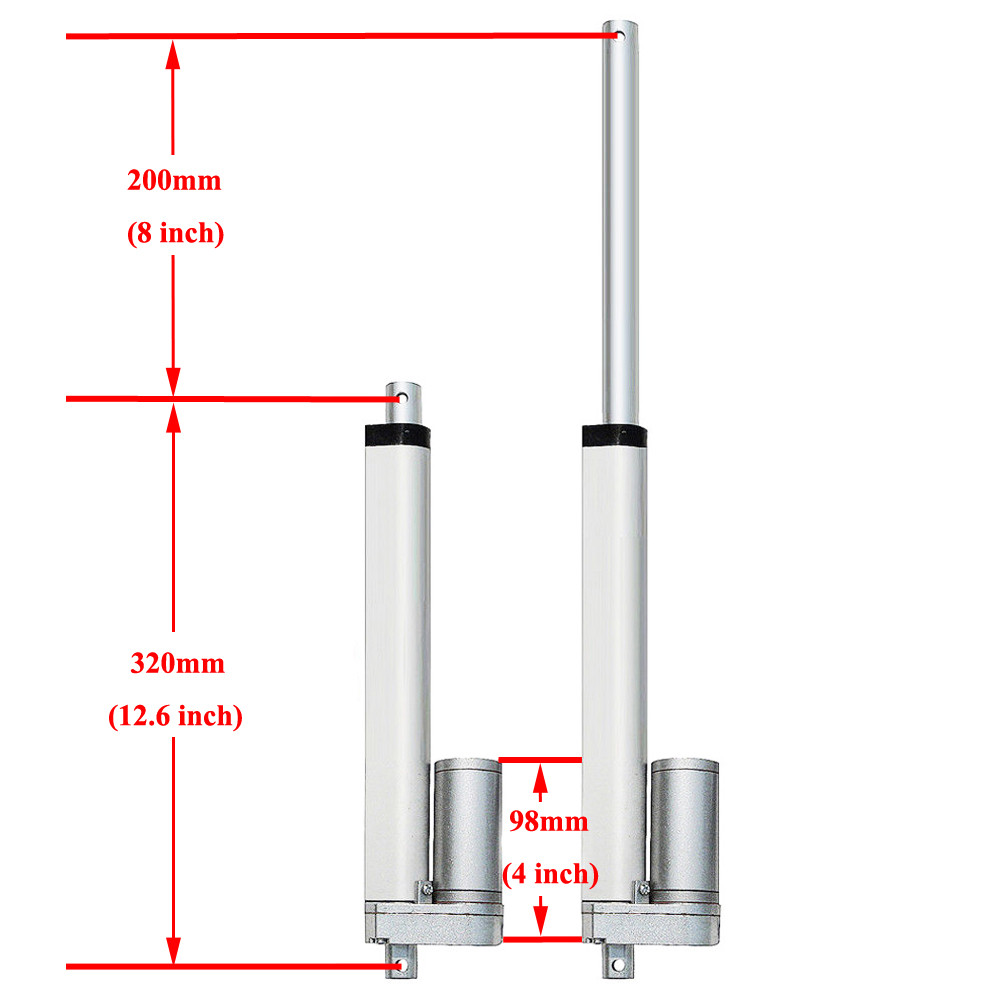

Retracted Length
155mm
205mm
260mm
320mm
370mm
420mm
470mm
550mm
600mm
Extended Length
205mm
305mm
410mm
520mm
620mm
720mm
820mm
950mm
1050mm
Note: Please check the dimensions carefully and choose the right one as you need.
Product Name
Linear Actuator
Input Voltage
DC 12V
Speed
5.7mm/s
14mm/s
Max Push Load
Max Pull Load
Power Cord Length
1.5Meters
Duty Cycle
25%
Operating Frequency
20%
Material
Aluminum Alloy
Color
Silver Grey
Operation Temperature
-26 ° C ~ +65 ° C
Protection Class
IP54
No-load Current
< 0.5A
Max load Current
3A
Certification
CE
Warranty
Standard 1 Year
*100% Brand New and high quality
*Heavy Duty and Long Lasting Motor
*High quality aluminum alloy material
*High performance motor
*Built-in high qualitylimit switch
*The low noise design, noise level below 60 dB
*Multiple Purpose Applications Linear Actuator
*Commonly Used In Automotive, Medical Devices and Engineering Industry
*With CEcertification
This is TK005-2 Controller with 2 remote controls, itowns the function to control DC brush motor’sforwardrotation andreverse rotation, it can also control two-way DC loads.This controller comes with remote control learning function,users can set one remote to control multiple controllers, one controller can be paired with 3 remotessimultaneously, users can also use 1 remote or 2 remotes,here are two remotes by default,the remote controls and controller have been paired before leaving factory.There are3 working modes: Jog Control, Self-Lock Control and Interlock Control,the 3 modes can be set and switched freely. The controller comes with limit port, users can use the limit function based on actual needs.Specification:
Brand
SZMWKJ
Model
TK005-2
Operating Voltage
DC 9-30V
Max Load Current
10A
Fuse
10A
Control Mode
Jog /Self-lock / Interlock Control
Manual Buttons
Yes
Wireless Remote
Yes
Frequency
433MHZ
Control Distance
≥50Meters
Protection Class
IP42
Operating Temperature
-20℃to + 60℃
Controller Dimension
Net Weight
115g
Package Weight
155g
Warranty
Standard One Year
Features:
*Wide voltage design, operating voltage range is DC 9-30V.
*Can control forward and reverse rotation of DC brush motors, can also work as a switch to control two-way DC loads.
*Three working modes (Jog Control, Self-Lock Control, Interlock Control) can be set freely.
*The controller is with replaceable internal fuse, with over-current and short-circuit protection function.
*Can be operated by the wireless remote control or the manual buttons on the controller box.
*The controller comes with remote learning function, it can be paired with 3 remotes simultaneously.
*With highly sensitive receiver, remote control distance ≥ 50meters.
*The controller is with low standby power, standby current ≤9mA.
For more details of our Wireless Remote Controller,PlsClick Here
This bracket provides easier installation, and allows for nearly 180 degrees ofrotation.
These are designed to fit easily onto either end of the actuator with a pin and cotter pin.
For more details of our Mounting Brackets,PlsClick Here
* Autos;
* The wedding system;
* Solar tracking system;
* Agricultural machinery;
* Industrial electric lifting system;
* The medical electric bed, surgical bed, traction bed;
* Chair for medical use: Electric wheelchair, Massage Chair, dental chair;
* Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etcAbout Payment
