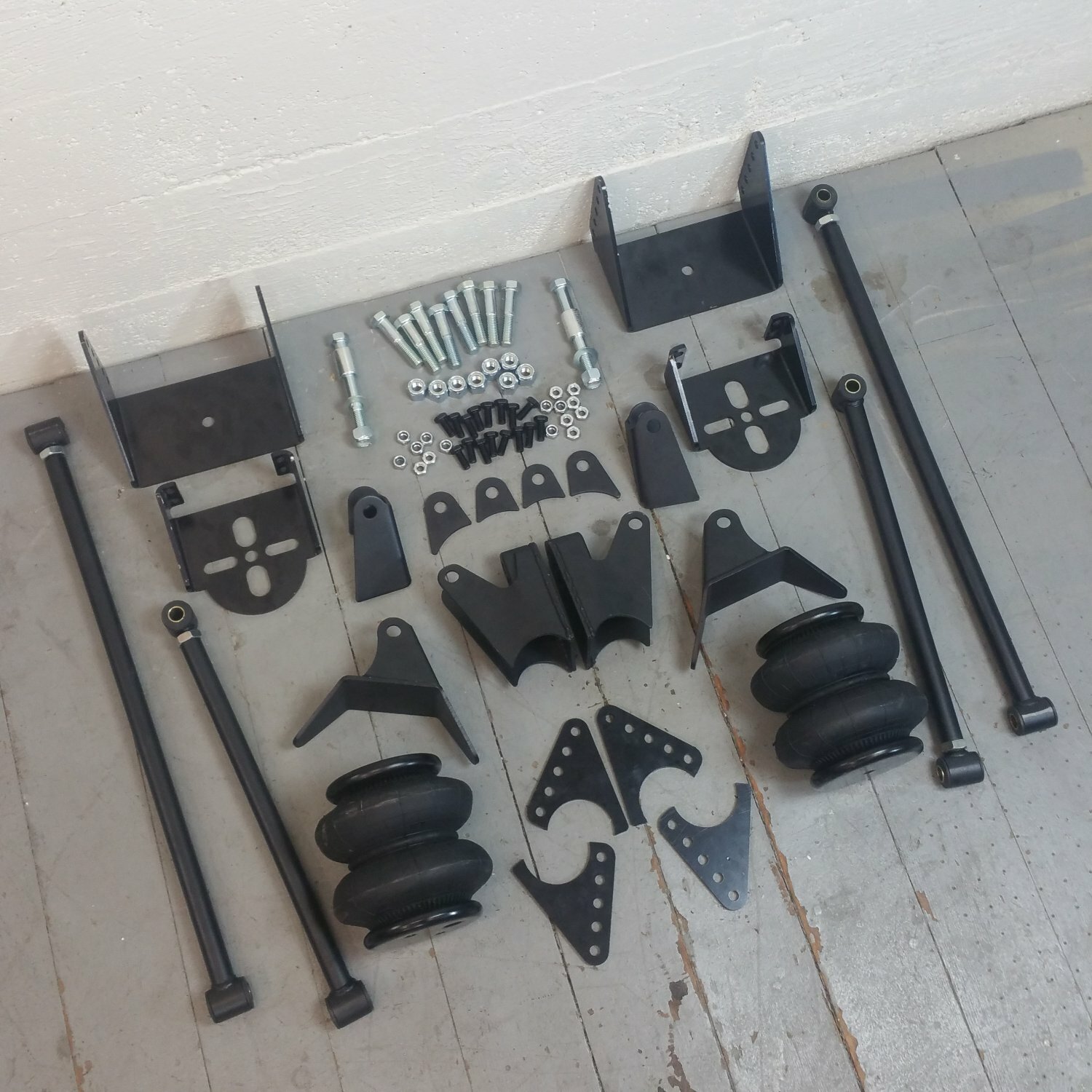

2600lb Bags Triangulated Full Size 4 Link Kit for 1994-2004 Chevy Truck S10
2600lb Bags Triangulated Full Size 4 Link Kit for 1994-2004 Chevy Truck S10Sku # 73FF0ConditionNewBrandTOP END SUSPENSIONUnit Of Measure1
This ultimate kit includes Heavy Duty Triangulated Full Size Universal Four Link Kit with Shock Hardware, 2 1/2inch Single Port Air Bags with a load rating of 2600 lbs and a Universal Rear Air Bag Bracket Kit. Putting a lot of horsepower through your rear end?
TOP ENDs New Heavy Duty Universal Triangulated 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, TOP ENDs full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. TOP ENDs adjustable 4-link features extra long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16 plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included. Looking for an air bag that can give you a smooth ride? Look no further!
TOP END bags feature a maximum restrained pressure of 602 psi, 8.51 inch usable stroke, with a load range of 2600 lbs, steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability. TOP END creates a high quality air bag that will give you the performance reliability you want with a smooth ride. And make sure you install it all correctly with our Universal Rear Air Bag Bracket Kit which includes 2 upper plates, 2 lower plates, 2 upper cups and 2 lower cups.We know rear suspension! Order your kits from the #1 rear four link kit reseller in the world!Pick from the top brands and get the best service!
We offer more rear four link kits then anyone and can help you pick the correct kit for your vehicle. Several performance packages and upgrades are available. The kit below is one of the most popular for 1999 Chevrolet S10.:: Kit Details ::
Application :: 1999 Chevrolet S10
Bar Material :: Steel
Bar Finish :: Raw
TIG Welded :: Yes
Brackets :: Weld On
Bracket Thickness :: 1/4
Style :: Triangulated
Tie Rods :: Heavy Duty CNC Machined
Tie Rod Travel :: 2.5
Drag Race Approved :: Yes
Main Bars :: 28
Secondary Bars :: 18
Travel :: Adjustable
Reinforced Pin :: Yes
Finish :: Raw Metal
Hardware :: Zinc Coated
Coil-Over Shocks :: Not Included
Ships :: FAST & FROM THE UNITED STATES!Please note this kit does not bolt on. It is designed with heavy duty weld on brackets to ensure maximum power transfer and adjustability. The unique heavy duty brackets allow for several installation positions for you 1999 Chevrolet S10. This kit can be installed for drag strip or street use. Coilover shocks are not included but available. There are several styles of coiler shocks you can choose from based on your application and vehicle use. . Please note the images in this listing are shown for reference only. All parts are raw or painted, not chromed or polished. Kit ships un assembled via UPS.
Brand:
TOP END SUSPENSION
Condition:
New
Sku:
