MSRCA

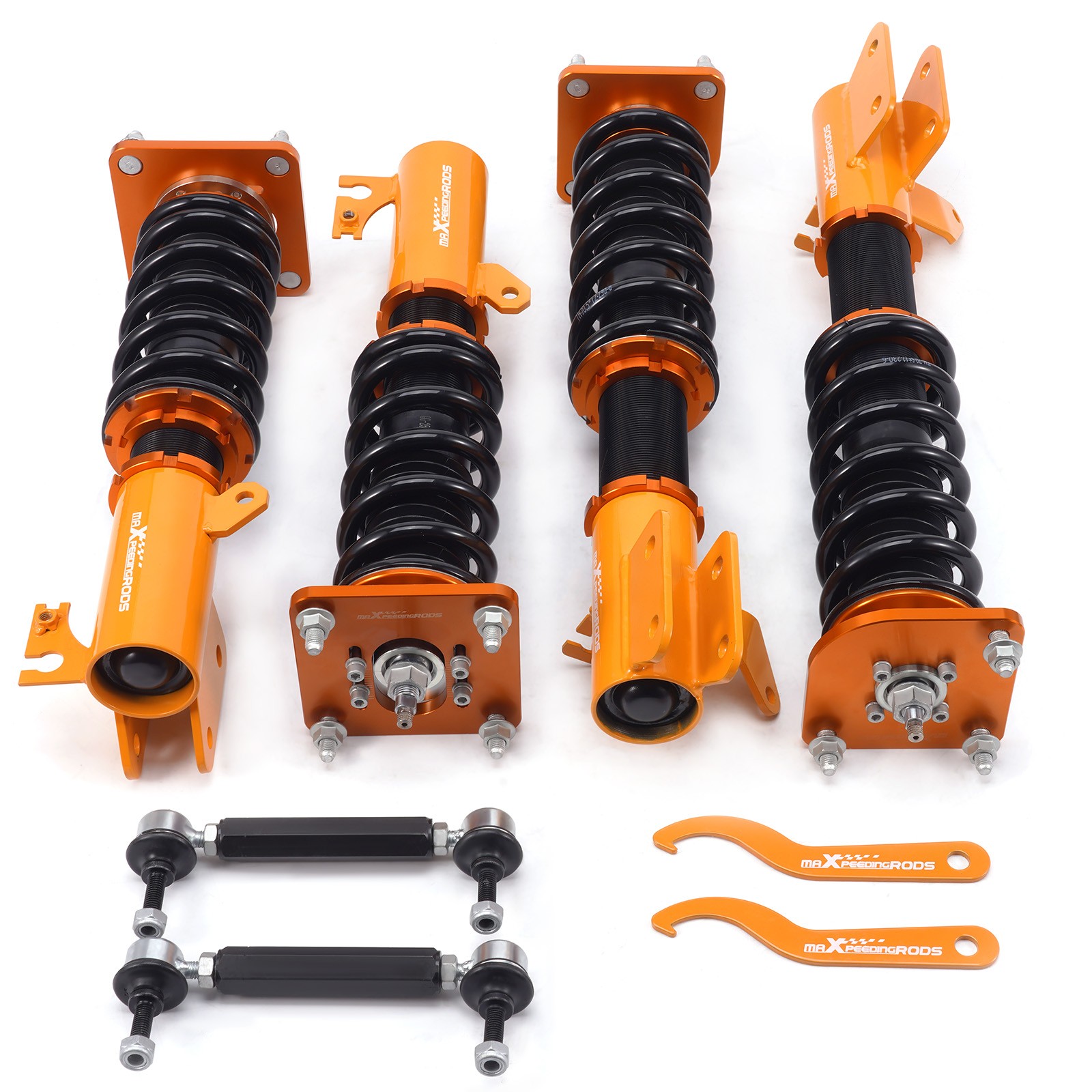

24 Way Damper Coilovers Suspension Kit for Mazda Protege 5 & 323 BJ 1999-2003
All modifications must be installed by licensed mechanics and in compliance with your local modification
Rebound Damping Force Adjustable
24 Step To Adjust Soft / Hard Adjustment According To Your Preference.
Anodized Shock Body With Anti-Corrosion Coating
Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.
Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.
Durable Cold Wound Steel & Heat Treated Coils
High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.
Rebound Damping Force Adjustable
Anodized Shock Body With Anti-Corrosion Coating
Drops From 1 to 3 Inch From Factory Ride Height
Durable Cold Wound Steel & Heat Treated Coils
Specifications
Top mount material Aluminum Height adjustable Yes, Lowering 1-3 inch Front Spring length 200 mm Rear Spring length 230 mm Front spring length 7 kg/mm (392 lbs/in) Rear spring length 6 kg/mm (336 lbs/in) Package Including 2 Front + 2 Rear Warranty 1 Year
Features
- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.
- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.
- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.
- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars. Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.
- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.
- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.
for Mazda Protegé 1999-2003
for Mazda Protegé5 1999-2003
for Mazdaspeed Protegé 1999-2003
for Mazda Isamu Genki (Taiwan) 1999-2003
for Mazda Allegro 1999-2003
for Ford Activa 1999-2003
for Ford Laser (KN/KQ) 1999-2003
for Ford Tierra Front top mount: Pillow ball with camber plate
- Rear top mount: Pillow ball
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Camber adjustable: Available
- Spring rate Front: 7 kg/mm (392 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 200 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring
Package included
2x Front coil-overs
2x Rear coil-overs
1x Pair of Rear sway bar links
2x C spanners
1x Allen wrench
★30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; 24 Clicks of Rebound Damping Force Adjustment; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 1 Year Limited Warranty From Date Of Purchase.
