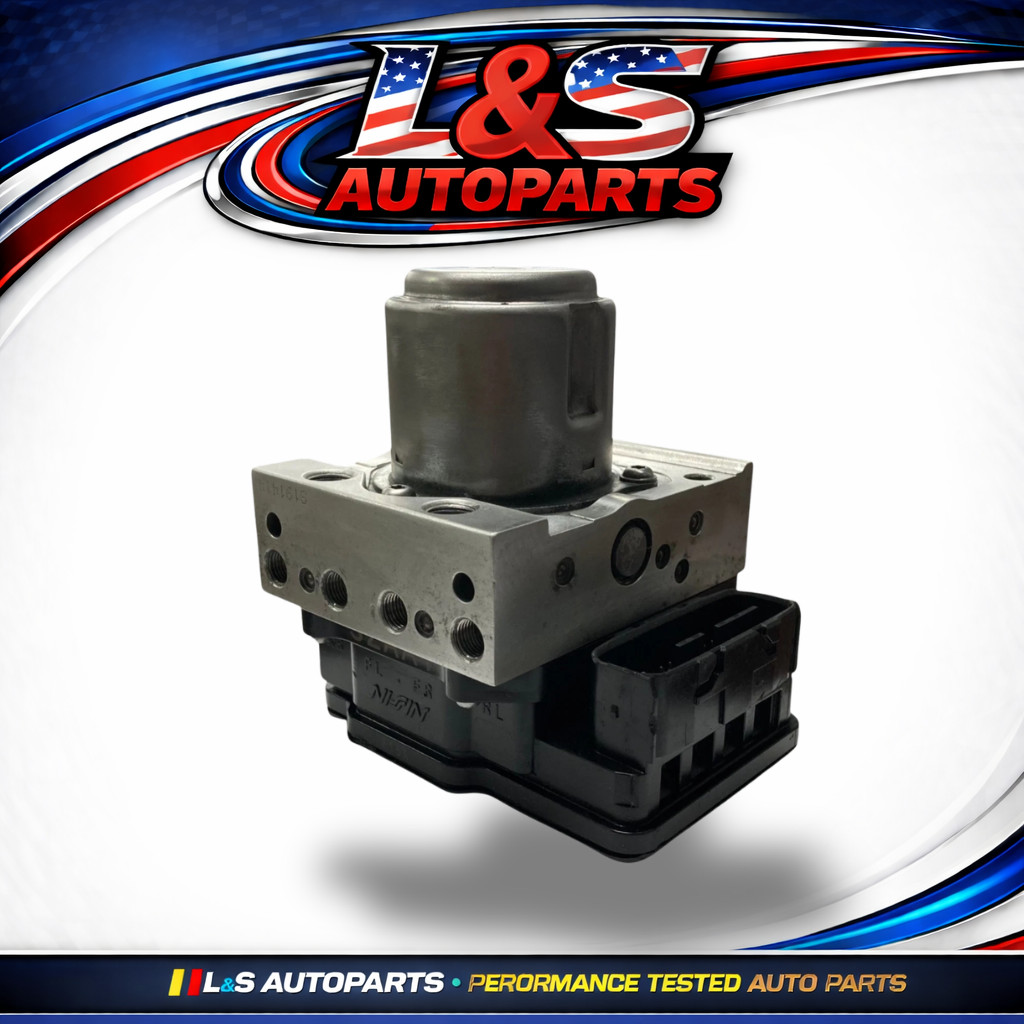

2012-2015 Honda Pilot ABS VSA Modulator Pump - TESTED OEM
Part Identifier: SZAA1 (4WD / AWD Models)
Part Number: 57110-SZA-A12 | 04571-SZA-A11
Compatibility & Fitment
This unit is designed for 4WD (All-Wheel Drive) Honda Pilots.
Honda Pilot (4WD/AWD): 2012, 2013, 2014, 2015
Trims: LX, EX, EX-L, SE, and Touring (4WD Only)
Interchange Part Numbers: 57110-SZA-A12 | 04571-SZA-A11 | 57110SZAA12 | 04571SZAA11
(Note: If your unit says SZBA1, that is for a 2WD model and this part is NOT compatible.)
Critical Installation Notes
VSA Sensor Calibration: Once installed, you MUST perform the VSA Sensor Neutral Position Memorization (Calibration). This can be done with a high-end scan tool or via a manual "pin-jump" procedure to sync the yaw and pressure sensors.
System Bleed: A complete brake system bleed is required. Using a scan tool to perform an "ABS Service Bleed" is highly recommended to purge air from the internal HCU valves.
