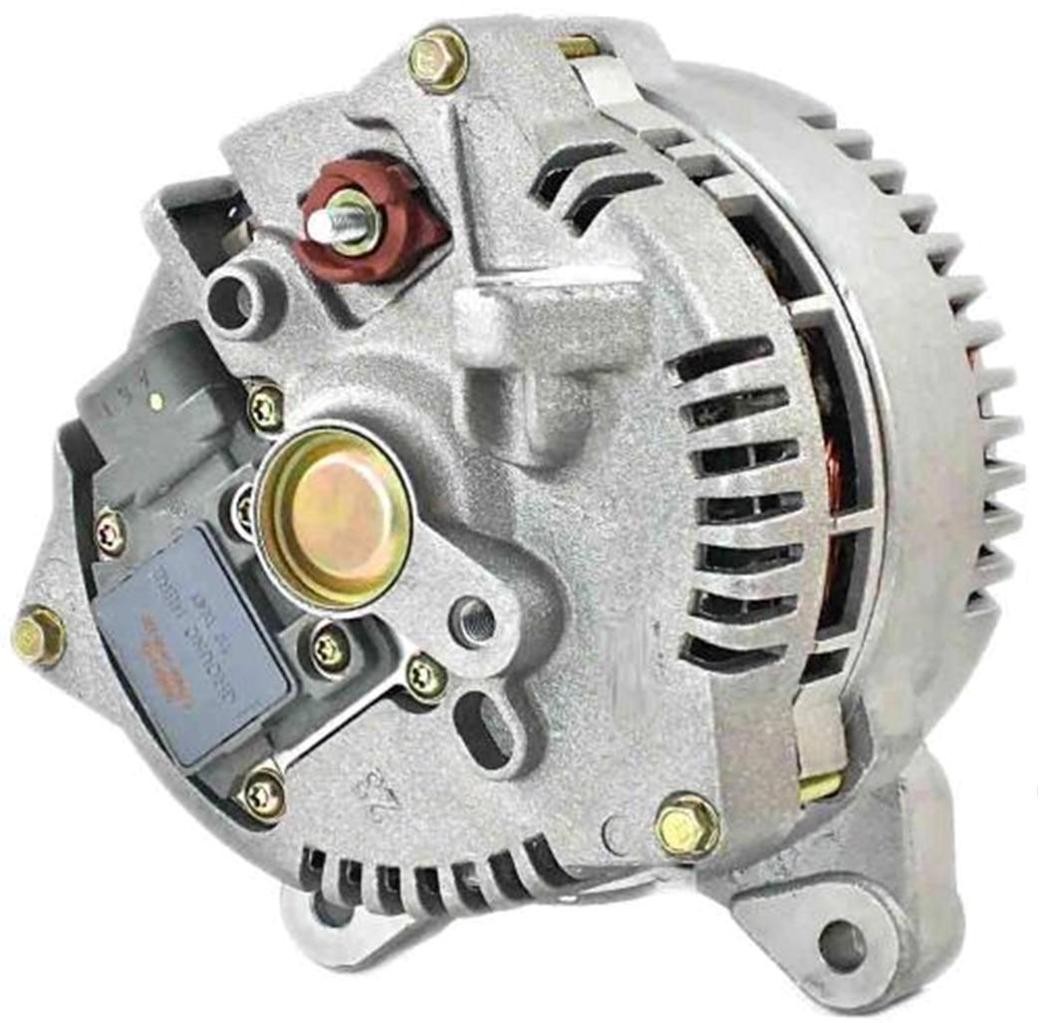

200A High Output Alternator 1997-2004 Ford E-Series F-Series 4.6L 5.4L 6.8L
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Ford: F65U-10300-EA / F65U10300EA
• Ford: F6PZ-10346-RA / F6PZ10346RA
• Ford: F6PZ-10346-RARM / F6PZ10346RARM
• Ford: F6PZ-10346-RARM1 / F6PZ10346RARM1
• Ford: F6PZ-10346-RARM2 / F6PZ10346RARM2
• Ford: F7UU-10300-AB / F7UU10300AB
• Ford Engineering: F65U-EA / F7UU-AB
• GL-372 / GL-372-RM / GL-497 / GL-497-RM
• Visteon: KJSPECIFICATIONS:
• Type: High Output Alternator — 200 Amp (Replaces OEM 95 Amp Unit)
• Series: 3G Ford
• Voltage: 12V
• Amperage: 200A (2x+ OEM output — ideal for high-amp audio, added loads)
• Fan: Internal (IF)
• Regulator: Internal (IR)
• Rotation: Clockwise (CW)
• Pulley: Serpentine 8-Groove
• Pulley OD: 59mm / 2.323in
• Regulator Clock: 10:00
• Polarity: Negative
• No Core Required
• Condition: NewAPPLICATION SUMMARY:
• Ford E-Series (E150/E250/E350/E450) 4.6L V8, 5.4L V8, 6.8L V10 (1997-2004)
• Ford F-Series (F150/F250/F350) 4.6L V8, 5.4L V8 (1997-2002)
• Ford F-Series (F250/F350/F450/F550) 6.8L V10 (1999-2002)
• NOTE: 5.4L Ford F-Series only — Exc Lightning (supercharged variant)
