2 X Oak / Grigsby Rotary Encoder - 128 PPR – 2 Channel Full Quadrature – 1\" Squa:
$29.95

2 X Oak / Grigsby Rotary Encoder - 128 PPR – 2 Channel Full Quadrature – 1\" style=\"\">

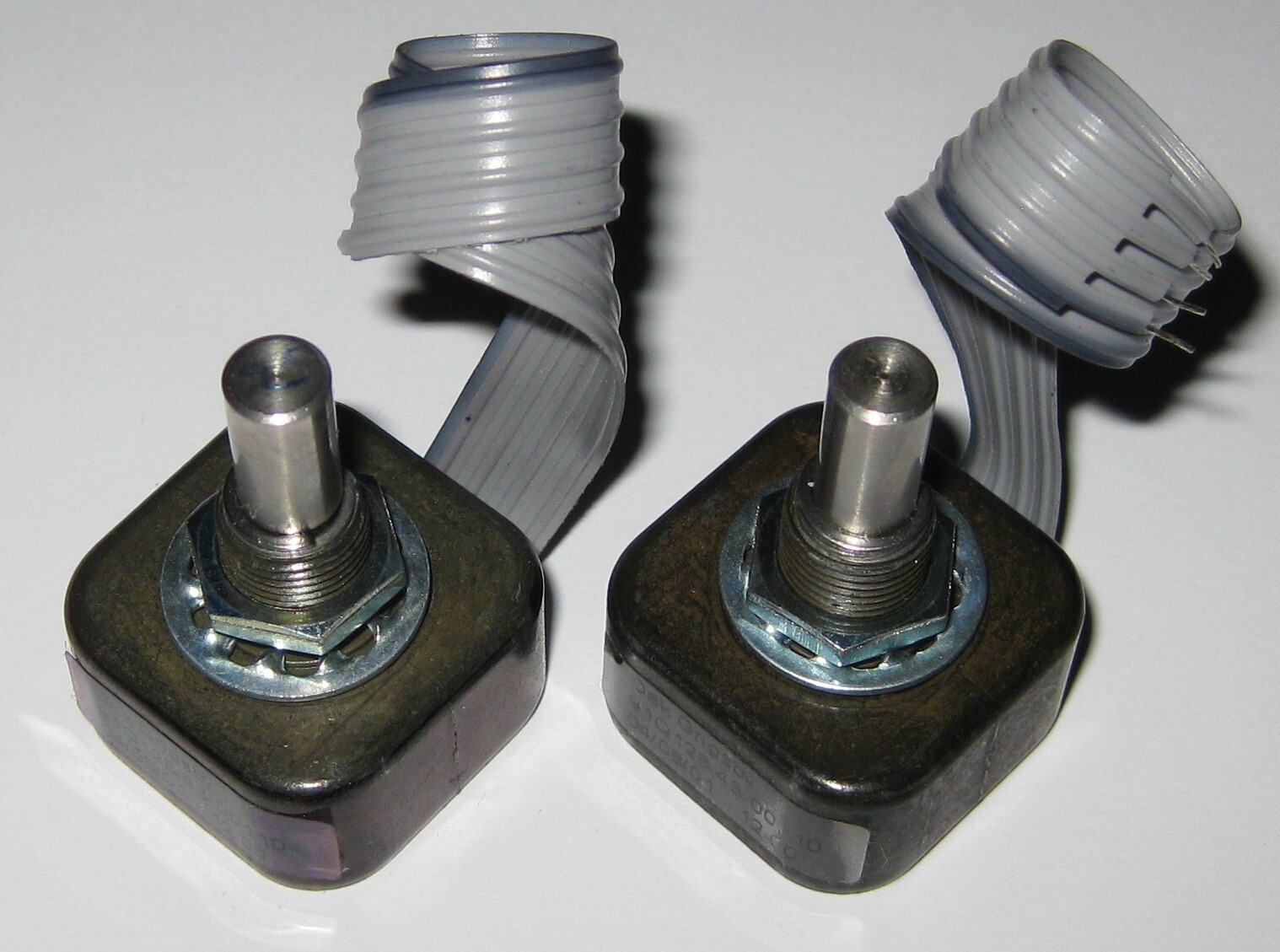

New old stock rotary encoder manufactured by Oak / Grigsby

You will receive 2 encoders

Model: 91Q128-43-00110

128 pulses per revolution - 512 total changes of state per revolution

Built with bi-cell photo diodes for long life and reliability

Uses Schmitt trigger circuitry to produce crisp wave output

VCC = 5V

Compatible with TTL logic

Output: 2 channel full quadrature encoding with channel A leading channel B by 90 degrees in clockwise rotation

Power consumption: 250 mW maximum

1\" square body with a sealed enclosure

1/4\" diameter stainless steel shaft, 0.4\" long

3/8\" threaded bushing

May be coupled directly to a motor, gear, axle or may be panel mounted with the included lockwasher and hex nut

Sealed sleeve bearing

200 RPM maximum speed

Weight: 1.1 oz. (31 g) each

4\" cable terminated with a 4 pin female plug

Typical applications: Industrial motion and direction sensing, motor controls, test and measurement instrumentations, etc.

Mounting hardware (nut and internal tooth star lock washer) is included
