We are the only authorized retailer for \"CNLINKO\" brand connector products, with complete warranty.
Selling ItemsModel Number:

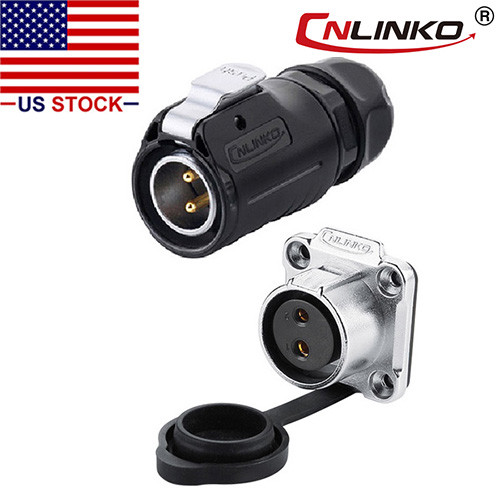

Plug: LP-20-C02PE-01-001Socket: LP-20-J02SX-03-401
Features:
● 2 cores in line with the diversity of industrial demand, signal and power compatible match.● Socket and internal components zinc alloy material, with a complete electromagnetic and radio frequency interference protection.● Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current.● PBT material shell, stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.● Unique docking design, a solid line extends infinitely long● 4-hole mounting, solid flawless, thread type transposon installation, suitable for circular openings industrial installation.● 20A rms rated current● Protection Level: IP67
Specification:
Cable specification2.5m㎡～4m㎡/14-20 AWGDiameter rangeΦ8mm～Φ12mmContact diameter × numberΦ2.7x2Rated Current (A)20AOperating voltage (AC.V.rms)500VContact resistance<1mΩTemperature rise20A contact temperature below 30℃,25A Voltage (AC.V) 1 minute2500VInsulation resistance＞500MΩProtection levelIP67Durability≥500 timesWorking temperature-40℃～80℃Connecting modePlug/unplugAssembly wireSolderHousing, the insulating partsHigh-performance engineering plasticsHardwareZinc Alloy (pearl hard chrome)Copper needlesCopper alloy (gold-plated 4U)Waterproof circleSilica gelFlammability ratingUL94-V0
LP-20 Series Specification Sheet
