Normally Closed – Opens when power is applied
Gravity Feed Capable – No Minimum Pressure

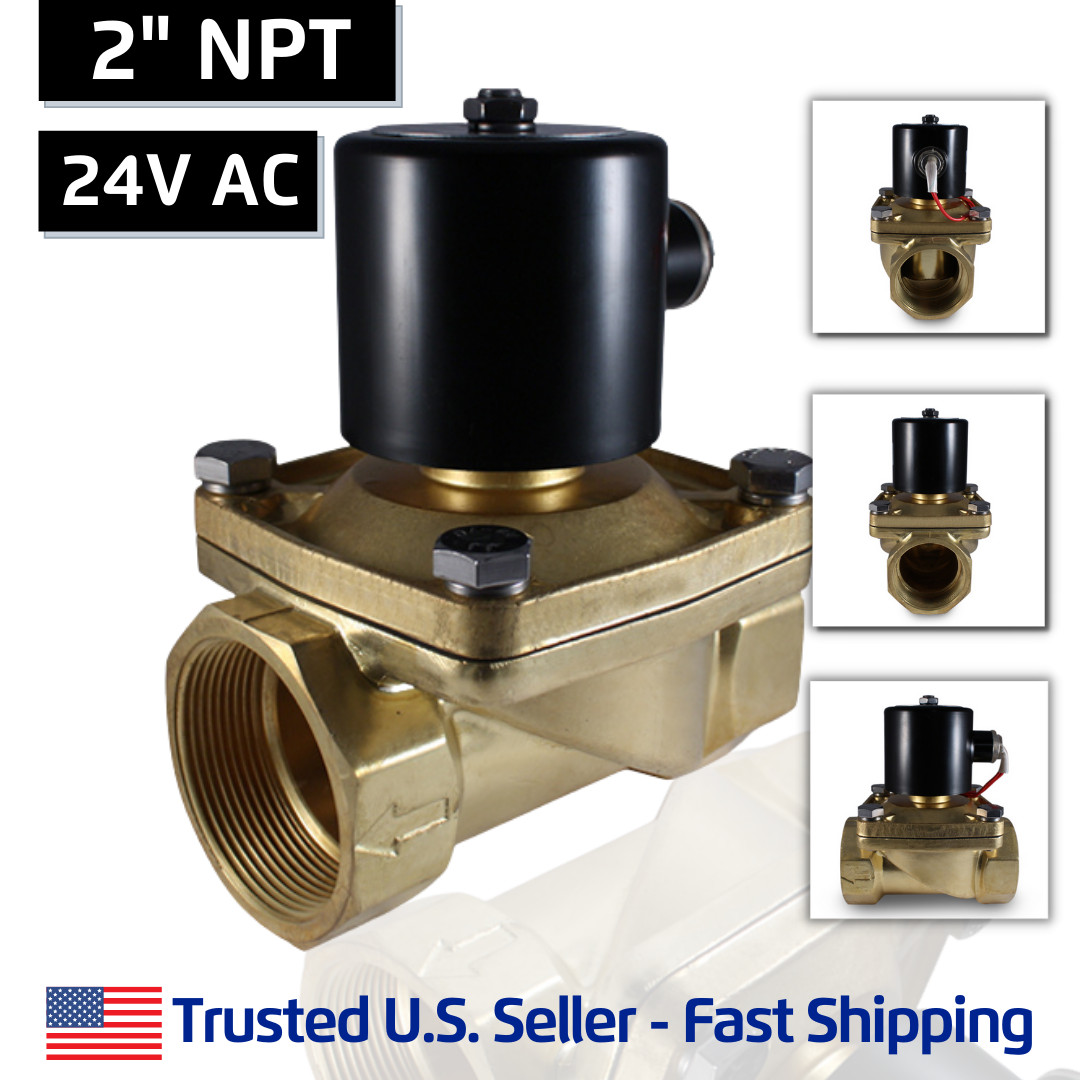

24 Volt AC Solenoid Valve Function Normally Closed Connection 2” Inch FNPT Temperature Range 15 – 265°F Pressure Range 0 – 145 PSI Power Requirements 40VA - 40 Watts *Suitable Media
Water – Air - Gas - EtcSpecifications Body Material Brass Components Stainless Steel Seal Material Viton® Diaphragm Operation Type Semi-Direct Lift Valve Coil Connection DIN Connection Orifice Size 50 mm Cv Value 48 *Duty Cycle 100% but not indefinitely Weight 7 lbs Height 6.50" Length 5.30" port to port Width 4.25"
Connection – NoPolarity, + and – can be interchanged.
The valve timing isuncertain, however it is fast acting. Less than one second.
Mounting position ispreferably coil up but can be mounted in any position.
*Consult a chemicalcompatibility expert for correct seal and valve body material choice.
*Duty Cycle – Likemost solenoid valves the coil will become hot to the touch when left oncontinuously. The temperature will stabilize without failure. Leaving the valvepowered on for long periods of time will reduce the life of the coil. Wheneverpossible the valve should be installed in a well ventilated are to increase thelife of the coil. The valve is not intended to be left energized as a fail-safefor power outages. In this case please contact us for other options.
A pre-filter isalways recommended to keep the diaphragm free from debris and the valvefunctioning properly.
