2 Gauge Set 85mm GPS Speedometer 0-120MPH/Fuel/Volt/Tacho/Oil/Temp with Senders:
$132.51

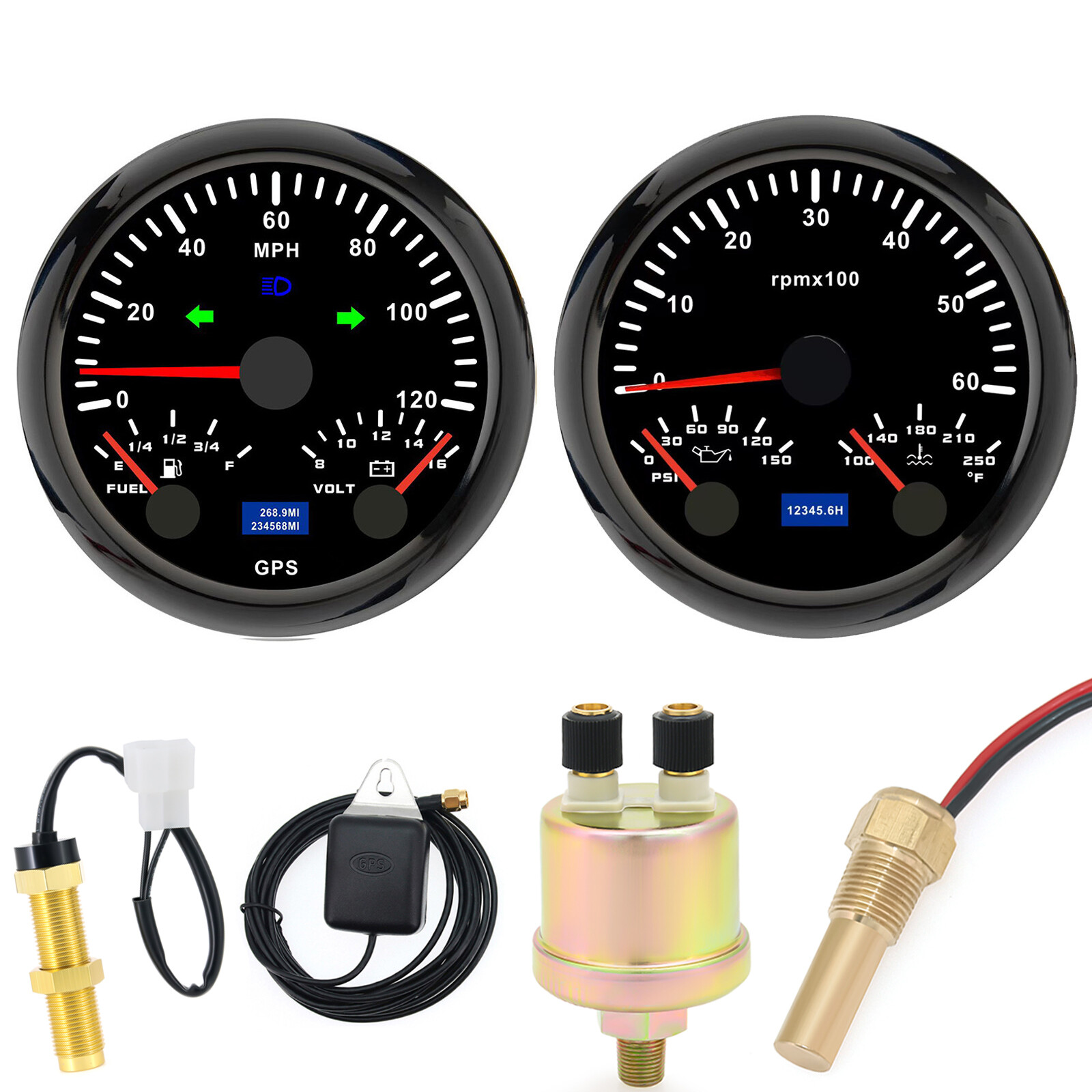

2 Gauge Set 85mm GPS Speedometer 0-120MPH/Fuel/Volt/Tacho/Oil/Temp with Senders

2 Gauge Set With Senders 85mm GPS Speedometer 0-120MPH Fuel Gauge Volt Tachometer 0-6000RPM Water Temp ℉ Oil Press PSI For water temperature gauge, Oil pressure gauge does not support desktop testing.

It is necessary to connect the SENDING UNITS in order to use it properly.

Any helps, please do not hesitate to contact me. Thank Tachometer Support : Car /Truck/ Boat /Diesel Generator Engine /Gasoline anti-fogging function;

316 Stainless steel bezel with curved glass;

Convenient Installation by multi-plug socket connecting way;

With curved glass( with anti-fog function).

7 colors baclight for your choose (red (default)→green →blue →white →yellow →cyan can adjust any color that you like

Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

CX8307B GPS Speedometer Specification:

Size: 85mm
GPS Speedometer: 0-120MPH
Fuel level: 0-190ohms, 240-33ohms, 10-180ohms, 0-90ohms(Can be adjusted)
Voltage: 8-16V
Working voltage: 9-32VDC
Working current: ＜100mA
Working temperature: -30-80℃
Storage temperature: -40-85℃
Backlight :7 Color backlight
Color: Black

CX8309B Tachometer Specification:

Size: 85mm
Tachometer: 0-6000RPM
Oil pressure: 0-150PSI
Water temperature: 100-250℉
Engine hours: 0.0-99999.9H
Working voltage: 9-32VDC
Working current: ＜100mA
Working temperature: -30-80℃
Storage temperature: -40-85℃
Backlight :7 Color backlight
Color: Black

Input parameter

Oil pressure sensor: 10~184ohms
Temperature sensor: 301~22ohms

CX8309B Connection

1 Black: Ground(-)
2 Red: 9-32vDC(+)
3 Blue:PRM signal
4 Yellow: Backlight
5 White: Oil pressure signal
6 Brown:Temperature signal
7 Green:Adjust

CX8307B Connection

1 Black : Ground(-)
2 Red : 9~32vDc(+)
3 Blue : Fuel signal
4 Yellow : BackLight
5 White : High Beam
6 Brown: Buzzer alarm(+)
7 Green: Nc
8 Yellow: Left Turn
9 Gray: Right Turn
10 white: External Button

Package Included:

1 x 85mm 3 in 1 GPS Speedometer
1 x 85mm 3 in 1 Tachometer Gauge
1 x GPS Antenna
1 x Tacho Sensor
1 x 1/8NPT Temp sensor
1 x 1/8NPT Pressure sensor
2 x Cable
2 x Installation Instruction
