BRAND NEW!!!

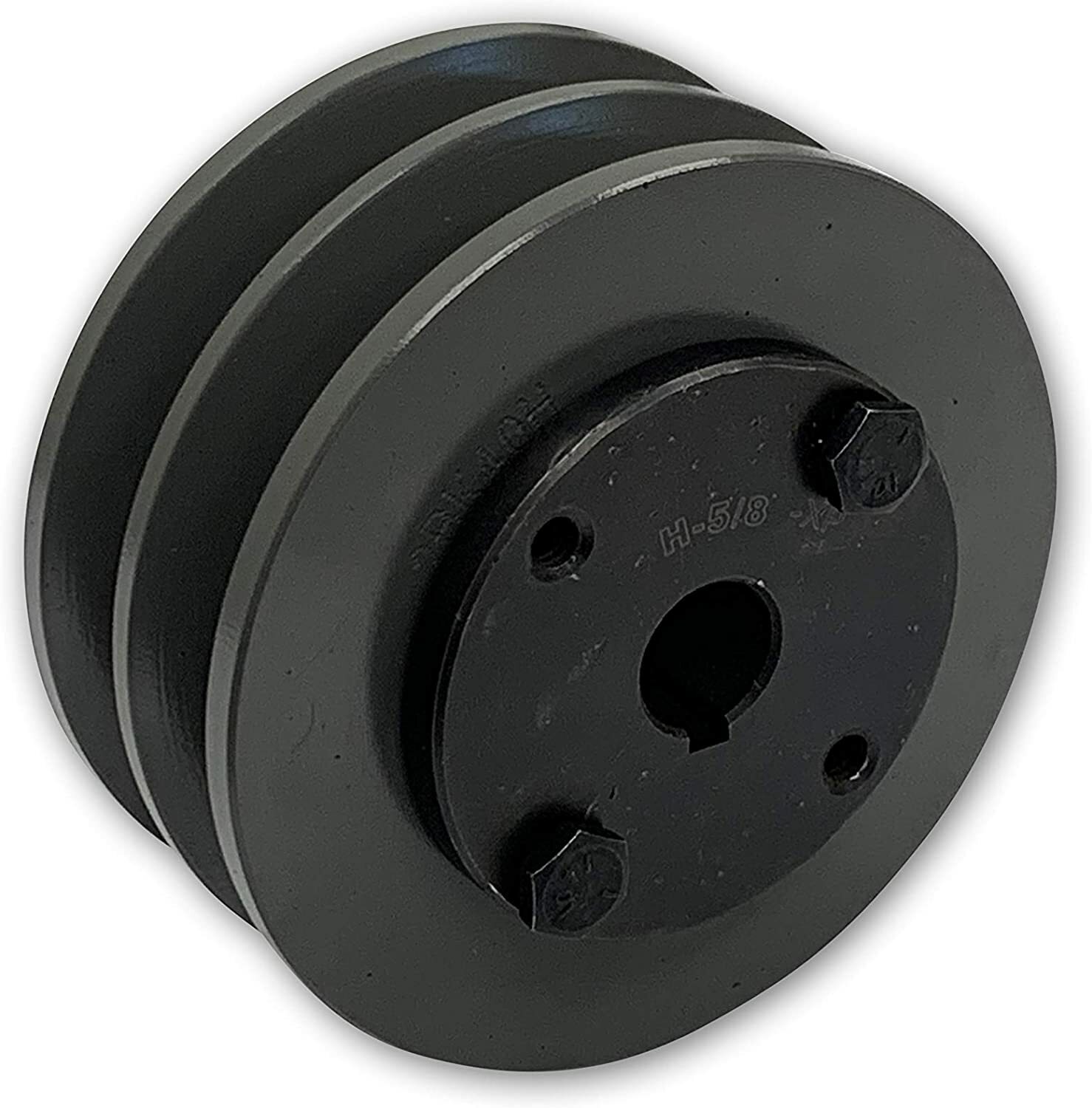

2 GROOVE CAST IRON ELECTRIC MOTOR PULLEY
PLEASE SELECT WHICH BORE SIZE YOU REQUIRE FROM THE DROP DOWN MENU ABOVE. BORE SIZE OPTIONS INCLUDE 5/8\", 3/4\", 7/8\", 1\", 1-1/8\" & 1-3/8\"
TWO GROOVE 3.45\" OUTSIDE DIAMETER CAST IRON ELECTRIC MOTOR\" H\" SINGLE GROOVE PULLEY/SHEAVE, BUSHING INCLUDED.
PULLEY GROOVE FITS 3/8\" AND 1/2\" TOP WIDTH 3L / A/AK / 4L / 4LK SECTION V BELTS.
5/8\" BORE COMES WITH 3/16\" KEY WAY INDENTION. KEYWAY NOT INCLUDED ON 5/8\" BORE PULLEY AND BUSHING.
3/4\" BORE COMES WITH 3/16\" KEY WAY INDENTION. KEYWAY NOT INCLUDED ON 3/4\" BORE PULLEY AND BUSHING.
7/8\" BORE COMES WITH 3/16\" KEY WAY INDENTION. KEYWAY NOT INCLUDED ON 7/8\" BORE PULLEY AND BUSHING.
1\" BORE COMES WITH 1/4\" KEY WAY INDENTION. KEYWAY NOT INCLUDED ON 1\" BORE PULLEY AND BUSHING.
1-1/8\" BORE COMES WITH 1/4\" KEY WAY INDENTION. KEYWAY NOT INCLUDED ON 1-1/8\" BORE PULLEY AND BUSHING.
1-3/8\" BORE COMES WITH 5/16\" KEY WAY INDENTION. KEYWAY IS INCLUDED ON 1-3/8\" BORE PULLEY AND BUSHING.
IF YOU ARE UNSURE AS TO WHAT SIZE PULLEY YOU NEED FOR YOUR APPLICATION, SIMPLY SEARCH ONLINE \" ELECTRIC MOTOR PULLEY CALCULATOR\". THERE YOU WILL BE ABLE TO CALCULATE EXACTLY WHAT SIZE PULLEY YOU NEED FOR YOUR APPLICATION IN ORDER TO RUN YOUR MACHINE AT THE MANUFACTURERS SUGGESTED RPM.
THIS CAST IRON SINGLE GROOVE PULLEY TAKES 1 BELT AND INCLUDES THE \" H \" STYLE TAPERED BUSHING.
GROOVE WILL FIT THE FOLLOWING V-BELT TYPE ( 3/8\" TOP WIDTH 3L / 3LK) (1/2\" TOP WIDTH 4L / 4LK / A / AK / AX )
THE TAPERED BUSHING LOCKS ONTO YOUR MOTOR SHAFT AS YOU SCREW DOWN THE LOCK SCREWS, RESULTING IN A SUPER TIGHT INDUSTRIAL TAPERED LOCK.
MOTOR PULLEY IS MADE OF CAST IRON, THE H BUSHING IS MADE FROM C45 STEEL WITH BLACK OXIDE FINISH.
CAST IRON PULLEY WITH SMOOTH-SURFACE ENGINEERED FOR RIGOROUS USE, LONG LIFE AND MINIMAL MAINTENANCE. THIS IS A PIECE BUSHING STYLE PULLEY THAT INCLUDES THE H PULLEY AND TAPERED H BUSHING. ELECTRIC MOTOR FRAME SIZE GUIDE.
5/8\" SHAFT DIAMETERS ARE FOUND ON 56, 56H, 56Y FRAME MOTORS ........
7/8\" SHAFT DIAMETERS ARE FOUND ON 56HZ, 145T, 182Y FRAME MOTORS..........
1-1/8\" SHAFT DIAMETERS ARE FOUND ON 182T AND 184T FRAME MOTORS
1-3/8\" SHAFT DIAMETERS ARE FOUND ON 213T AND 215T FRAME ELECTRIC MOTORS.
