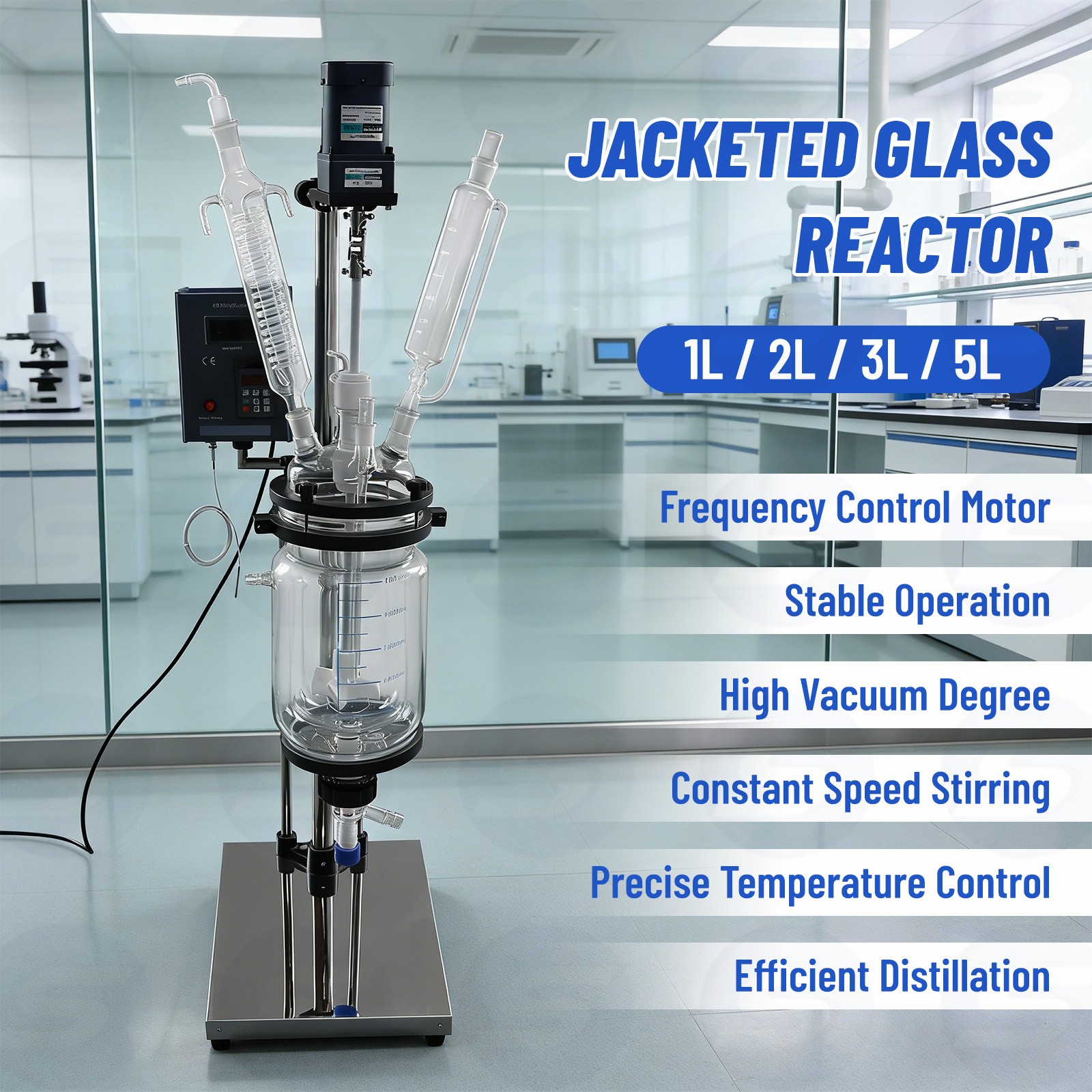

1L - 100L Double Layer Glass Jacket Reactor Chemical Stirred Reaction Vessel For Sale

Double Layer Glass Reactor1. GG17 high borosilicate glass, which can ensure good chemical and physical properties.2. If hot oil cycles through the jacketed glass, heating experiments could be done. On the contrary, low temperature experiments can be done if the circulated fluid is cold.3. The heat of reaction could be taken away quickly through water, which is cycling in the jacketed glass.4. The design of large bottle mouth makes it easier to clean. 5. LCD display makes it is easier and more convenient to measure temperature.6.Gear Motor: International copper wire, high efficiency, long operation time, good stability and noise free, standard gears, no gap and abrasion resistance, CE approved.7.Constant Pressure Funnel: Temp range -100°C - 400°C, strong acid and alkali resistant hig

1L - 100L Double Layer Glass Jacket Reactor Chemical Stirred Reaction Vessel

Double-Layer Glass Reactoris designed as double-layer glass, and the inner layer is placed in the reaction medium for stirring reaction, and the interlayer can be heated or cooled by using different cold and heat sources (refrigerant, hot water, or hot oil).

The working principle and application range of the double-layer glass reactor: under the constant temperature condition, in the closed glass reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed. With distillation, the reaction is completed, the material can be discharged from the discharge port of the bottom of the kettle, and the operation is extremely convenient. It is an ideal pilot and production equipment for the synthesis of modern fine chemical plants, bio-pharmaceuticals, and new materials.

Double Layer Glass Reactor1. GG17 high borosilicate glass, which can ensure good chemical and physical properties.
2. If hot oil cycles through the jacketed glass, heating experiments could be done. On the contrary, low temperature experiments can be done if the circulated fluid is cold.
3. The heat of reaction could be taken away quickly through water, which is cycling in the jacketed glass.
4. The design of large bottle mouth makes it easier to clean.
5. LCD display makes it is easier and more convenient to measure temperature.
6.Gear Motor: International copper wire, high efficiency, long operation time, good stability and noise free, standard gears, no gap and abrasion resistance, CE approved.
7.Constant Pressure Funnel: Temp range -100°C - 400°C, strong acid and alkali resistant high temperature resistant high strength and hardness, feed rapidly, no residual and easy clean
8.Frequency Converter: more convenient more intuitive more accurate
9.Big Mouth discharge valve: Large diameter discharge valve: PTFE discharge valve adopts 180mm large bottle mouth design, easy to clean, easy to disassemble, no dead corner. Solid/liquid material can be easily released from the of cover port445566666Inter-layer volume1.2L1.8L2L2.2L4L6L8L12L22LGlass MaterialGG17 high-borosilicate glassRotate speed0-600rpmDiameter of stirringshaft12mm15mmStirring power60W 1:3 gear motor120W 1:3 gear motor250WVacuum degree0.095MpaVoltage/frequency110V 60HzSupport modeBaseboard type304 stainless steel tic-tac-toeframeTechnical parameter:100L Lab Double Layer Glass Jacket Reactor Chemical Stirred Reaction VesselBasic ParameterTypeS-100LGlass materialGG-17Frame materialStainless SteelPipe fitting material304 Stainless SteelMove methodUniversal castors with brakingReaction flask volume100LInterlayer volume22LFlange type oil in and out circulation portEnter from low port, come out from high portNumber of reactor bottle6Discharge outlet liftoff height450mmReactor reaction temperature-80-250 degreeVacuum degree0.098MpaStirring speed0-450rpmStirring diameter of axis15mmStirring dimension(mm*mm*mm)610*610*2500Package Dimension(mm*mm*mm)1900*710*920Package weight(KG)146Functional ConfigurationsSpeed adjustment modeElectric stepless speed regulationElectrical machine configurationLow speed reinforcement electrical machine, speed ratio 3:1Rotate speed display modeLiquid crystal digital displayTemperature display modePT100 sensor digital displaySealing modePTFE sealing, ¢50 flange stirring mouthCondenserVertical high efficiency double backflow condenser pipe 120*640mm, 40# standard mouthBackflow (distillation) deviceBackflow elbow is equipped with discharge switch, 50# ball milling mouthDropwise adding device2L constant voltage funnel, 40# standard mouthDepression device34# standard mouth reducing valveTemperature testing tube24# standard mouthSolid charging¢80 flange mouth with PTFE coverDischarging methodInclined glass discharging valve, ¢80 flange mouthVacuum display modeVacuum meterStirring connecting methodUniversal joint connectingStirring barAnchor type stainless steel bar, covered with PTFE

Basic Parameter

Type

S-50L

Glass material

GG-17

Frame material

Stainless Steel

Pipe fitting material

304 Stainless Steel

Move method

Universal castors with braking

Reaction flask volume

50L

Interlayer volume

12L

Flange type oil in and out circulation port

Enter from low port, come out from high port

6

Discharge outlet liftoff height

450mm

Reactor reaction temperature

-80-250degree

Vacuum degree

Stirring speed

0-450rpm

Stirring diameter of axis

12mm

Stirring power

120W 1/3

110V 60hz / 220V 50Hz/60hz

Boundary dimension(mm*mm*mm)

760*560*2450

Package Dimension(mm*mm*mm)

1720*680*850 0.99m³

Package weight(KG)

92

Functional Configurations

Speed adjustment mode

Electric stepless speed regulation

Electrical machine configuration

Low speed reinforcement electrical machine, speed ratio 3:1

Rotate speed display mode

Liquid crystal digital display

Temperature display mode

PT100 sensor digital display

Sealing mode

PTFE sealing, ¢50flange stirring mouth

Condenser

Vertical high efficiency double backflow condenser pipe 120*640mm, 40# standard mouth

Backflow (distillation) device

Backflow elbow is equipped with discharge switch, 50# ball milling mouth

Dropwise adding device

2K constant voltage funnel, 40# standard mouth

Depression device

34# standard mouth reducing valve

Temperature testing tube

24# standard mouth

Solid charging

¢80flange mouth with PTFE cover

Discharging method

Inclined glass discharging valve, ¢80flange mouth

Vacuum display mode

Vacuum meter

Stirring connecting method

Universal joint connecting

Stirring bar

Anchor type stainless steel bar, covered with PTFE

Optional

Configurations

Main body support

Tray type

Collecting device

Collection bottle

Anti-Explosion

Anti-explosive frequency changer, anti-explosive electric machine EX180W 0-1400rotate

Frame part

Spraying plastics pr PTFE

Heat insulation device

Cotton insulation

Sealing part

Ceramic bearing, mechanical sealing

Condenser

Horizontal type condenser can reduce overall height

Reactor cover

Custom-made PTFE reactor cover
