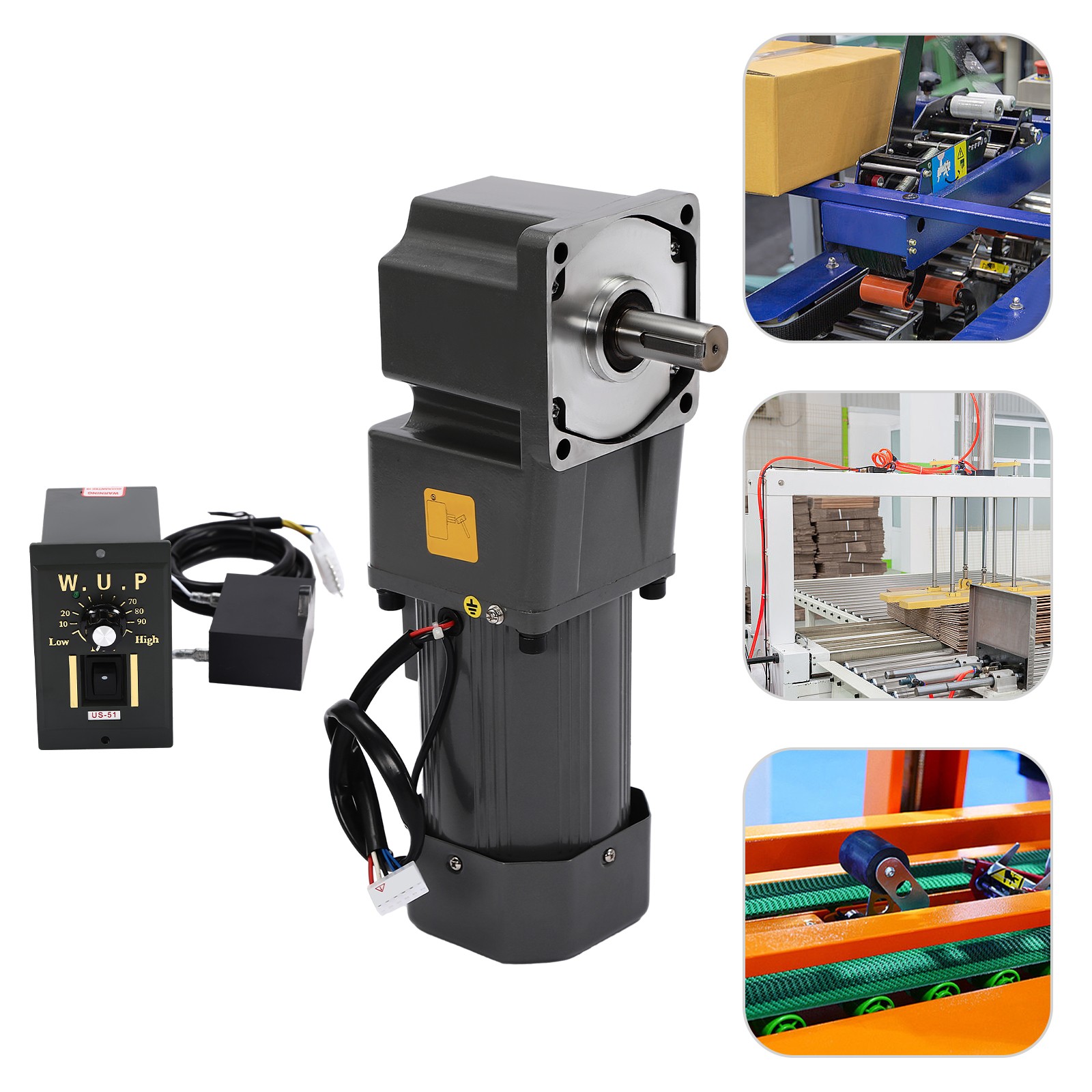

110V 200W Adjustable Speed Reversible AC Gear Reduction Motor with Controller
Description
Boost productivity with the high efficiency of this 200W reduction motor, which significantly cuts down your working time. It features a precision governor with a wide speed range for adjustment across various tasks. Combined with its high torque output, this motor serves as a powerful and reliable partner for demanding applications.
Key Features
High-quality Material: This product is made of high-quality medium carbon tempered steel, with high hardness, strong wear resistance, anti-corrosion, anti-rust performance, and long service life.
Powerful Performance: A 200W motor delivers a speed of up to 45rpm, increasing use efficiency and significantly reducing your working time.
Effective Thermal Management: Equipped with an integrated cooling fan, a ventilation opening at the base, and a premium pure copper coil that ensures consistent performance, all working together to efficiently dissipate heat and maintain reliable, long-term use.
Variable Speed Control: The highly accurate speed adjuster, featuring a broad range of settings, enables you to customize the speed based on specific needs, helping you achieve great results.
Switching Capability: This product offers a versatile control mechanism with selectable normally open or normally closed configurations, adjustable via rewiring or adding switches, delivering greater flexibility and user autonomy.
Large Torque: The stable pure purple copper coil and gear set consisting of full ball bearings and medium carbon tempered steel gears can effectively increase the torque of the motor, providing you with smoother and more powerful operation.
Easy to Clean: The surface of the product is smooth and flat to clean. You can easily wipe off the dust and stains on the surface with a rag.
Easy to Install: Complete installation parts and a detailed English manual can help you to install quickly and accurately.
Details
Functional Stator: The stator features ball-bearing axle wheels at both ends, reducing friction, heat generation, and noise for smoother and quieter performance.
Precision Components: The high-class fittings ensure a secure and great fit of the top and bottom casings, enhancing rotor stability during use.
Gearbox: 5GU gears are vacuum plasma nitrided for high strength and its shaft keyway is equipped with fixed key pins for wear resistance and stability. The gearbox has built-in solid lubricant for smoother rotation.
Application
This product can be used in packaging, printing, textile, printing and dyeing, chemical, food, pharmaceutical, and other engineering machinery, as well as advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouse, parking lot, and other equipment.
Specifications
Material: Medium Carbon Tempered Steel
Color: Dark Grey
Process: Plastic Spraying, One-piece Forming, Heat Treatment
Type: Medium Solid Motor
Reduction Ratio: 1:30 (30K)
Power Supply: Wiring
Voltage: 110V
Power: 200W
Torque: 36NM
Rotational Speed: 45R/MIN
Output: 90° Right Angle Output
Gross Weight: 10kg/ 22.05 lbs
Net Weight:9kg/19.84lbs
Total Height: 34.4cm/13.54 in
Reduction Box Size: 10.4*10.4cm/4.09*4.09in
Governor Size: 10*6*9cm/3.9*2.4*3.5in
Package Size: 35*16.5*14.5cm/ 13.78*6.5*5.71 in
Package Included
1 * Speed Reduction Motor
1 * Speed Governor
1 * English Manual
All Accessories for Installation
Notes
Our motors do not include the power cord and the bracket.
Please do not plug and unplug the power cord with the power on. Please do not knock on the machine.
The speed reduction motor is composed of a motor and a speed reduction gear. Different speed ratios can achieve different speed regulation ranges, and they have different strengths.
The speed of the output shaft is different under different reduction ratios. When the gearbox decelerates, the higher the reduction ratio, the higher the force. The slower the speed regulated by the governor, the lower the torque.
The motor can run for a long time within the safe speed regulation range. The safe speed regulation range for small loads is 50% of full speed-full speed. The safe speed regulation range for large loads is 70% of full speed-full speed.
Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
