10 PACK Eaton BRNSURGE Type BR Circuit Breaker Surge Protective Device 18kA NEW For Sale

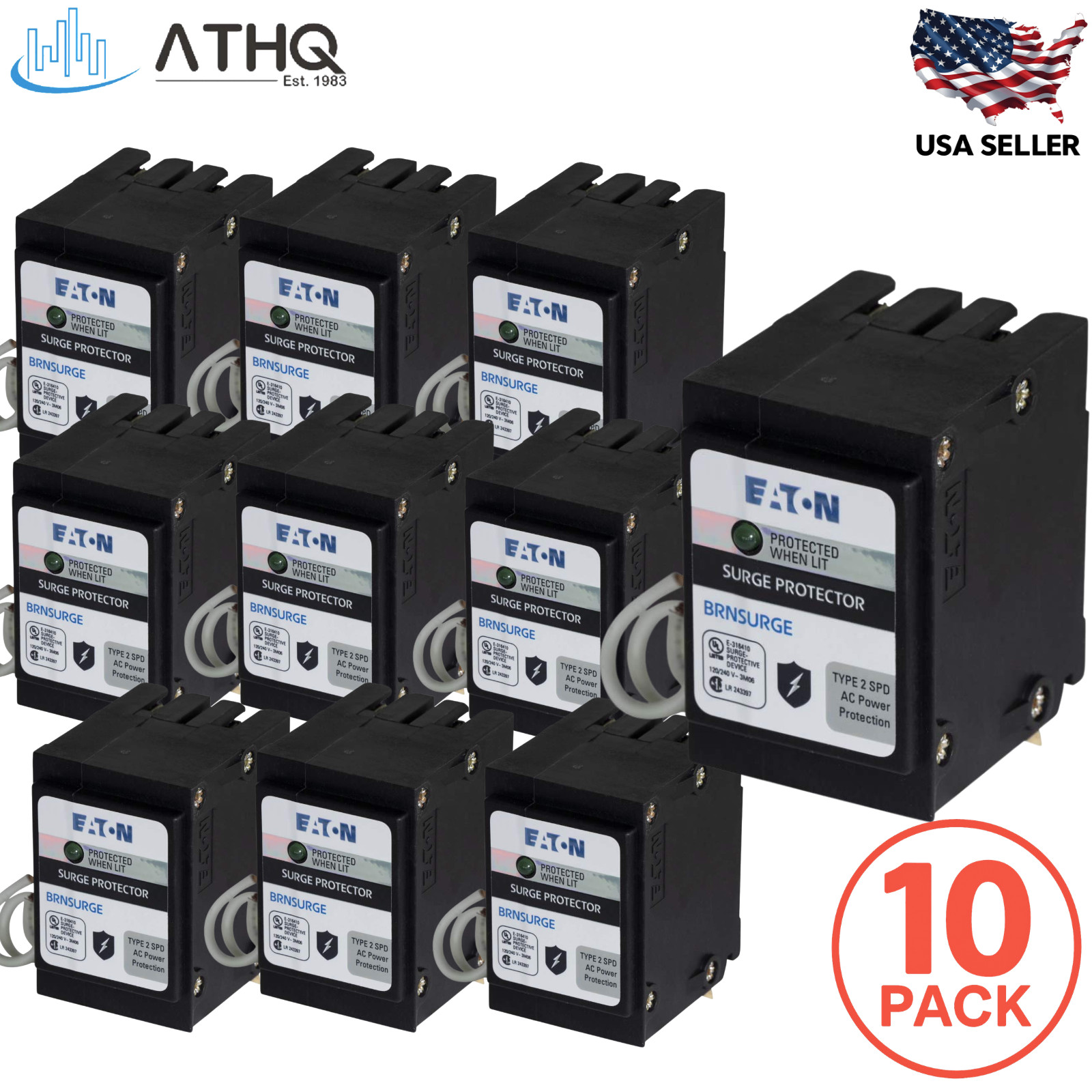

10 Pack - Eaton BRNSURGE - Type BR Circuit Breaker Surge Protective Device, Type 2 SPD, 2-Pole, 18kA, 120/240V, Pigtail Neutral - New

This 10-pack of Eaton BRNSURGE modules provides Type BR plug-on surge protection — a Type 2 surge protective device (SPD) in a two-pole breaker form factor — for 120/240V single-phase (split-phase) BR loadcenters, protecting appliances, HVAC equipment, LED lighting, and sensitive home and office electronics from damaging voltage transients. Each module provides 18 kA surge current capacity per phase with a 3 kA nominal discharge current (In) and a 600 V Voltage Protection Rating (VPR) per UL 1449, with protection modes L-N and L-L. The pigtail neutral design plugs onto the panel bus and lands a white lead on the neutral bar, so each unit works in legacy BR loadcenters as well as plug-on neutral BR loadcenters. A single status LED on each module indicates the surge protective device is operational. Ten modules ship in this listing — a bulk quantity for electrical contractors, multi-family properties, and facility maintenance stock, covering up to ten separate loadcenters.

Eaton BRNSURGE - Key Features & Benefits

• Pack of 10 Modules: Ships as ten complete BRNSURGE surge protection modules, each a two-pole 18 kA unit for a separate Type BR loadcenter
• 18 kA Surge Current Capacity Per Phase: Rated for 18 kA surge current capacity per phase with a 3 kA nominal discharge current (In) and a 600 V Voltage Protection Rating (VPR) per UL 1449
• Type 2 SPD Mounted Inside the Loadcenter: A UL 1449 Listed Type 2 surge protective device that installs directly in the panel, protecting downstream circuits rather than a single outlet or appliance
• L-N and L-L Protection Modes: Protects both lines to neutral (L-N) and line to line (L-L) on a 120/240V single-phase (split-phase) system, with a maximum continuous operating voltage (MCOV) of 150 V L-N and 300 V L-L
• Pigtail Neutral Design for New and Retrofit Panels: The white neutral lead terminates on the panel neutral bar, making this module suitable for legacy BR loadcenters and plug-on neutral BR loadcenters alike
• Single Status LED for Simple Diagnosis: One LED indicator reports the operational status of the surge protective device; any loss of protection is signaled when the LED extinguishes, indicating the module needs to be replaced
• Certified for Residential and Commercial Panels: Listed to UL 1449, UL File No. E316410, CSA certified to C22.2 No. 269.2, with a 10 kA short-circuit current rating (SCCR) and a 50/60 Hz frequency rating

Eaton BRNSURGE - Technical Specifications

• Manufacturer / Part Number: Eaton • BRNSURGE
• Product Type: Type BR plug-on surge protection module (surge protective device)
• Pack Quantity: 10 modules (each two-pole, 18 kA per phase)
• SPD Type: Type 2
• Number of Poles: 2 (two-pole)
• System Voltage: 120/240 Vac single-phase (split-phase)
• Neutral Connection: Pigtail (white lead to panel neutral bar)
• Surge Current Capacity: 18 kA per phase
• Nominal Discharge Current (In): 3 kA
• Voltage Protection Rating (VPR): 600 V per UL 1449
• Maximum Continuous Operating Voltage (MCOV): 150 V L-N • 300 V L-L
• Protection Modes: L-N, L-L
• Short-Circuit Current Rating (SCCR): 10 kA
• Frequency Rating: 50/60 Hz
• Status Indication: Single LED protection indicator
• Certifications: Listed to UL 1449 (File No. E316410) • CSA C22.2 No. 269.2 • cUL Certified
• Dimensions: 3.6 in L × 3.5 in W × 2.25 in H
• Weight: 0.35 lb per module
• UPC: 786689353667
• Condition: New

Eaton BRNSURGE - Frequently Asked Questions (FAQ)

• Which panels is the BRNSURGE compatible with?
  It is designed for Eaton Type BR loadcenters on a 120/240V single-phase (split-phase) system. Because it uses a pigtail neutral lead, it can be used in legacy BR panels and plug-on neutral (PON) BR panels, since PON neutral bars still accept a wire termination. It does not fit Type CH loadcenters.
• What is the difference between BRNSURGE and BRPSURGE?
  The BRNSURGE is the pigtail neutral version with a 600 V VPR; the BRPSURGE is the plug-on neutral (PON) version with a 500 V VPR. All other ratings — 18 kA per phase, 3 kA In, 10 kA SCCR, Type 2 — are identical.
• How is it installed and how do I know it is working?
  With power off, the module plugs onto the panel bus in a two-pole position, and the white lead is cut to length and landed on the neutral bar. Once power is restored, the LED lights to indicate the surge protective device is operational; if the LED goes out, protection has been lost and the module must be replaced. All electrical work should be performed by a qualified electrical contractor.
