Specifications:
Input voltage 3.6~30V,output ±3~±30V adjustable
Maximum output power: 20W (For details, please see the description at the bottom or ask us for information.)
Conversion efficiency: 69-88%
Quiescent current: 3mA

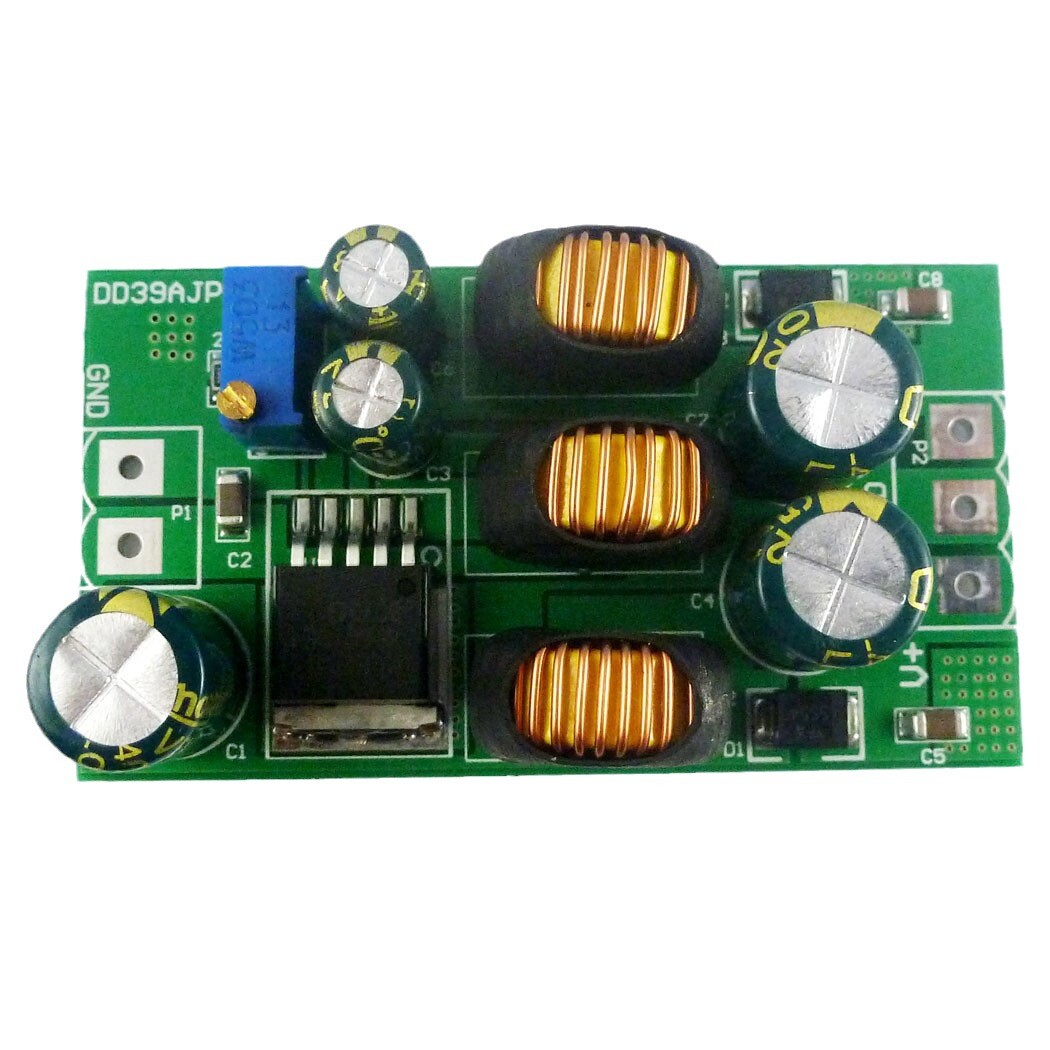

20W DC-DC Boost-Buck Converter working frequency 180KHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
Size: 60x34x15mm
Weight: 29g(no terminal)
High efficiency up to 88%
Built in Frequency Compensation
Built in Soft-Start Function
Built in Thermal Shutdown Function
Built in Current Limit Function
Note:
1. Due to the light and screen difference, the item\'s color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
Package Included:
1/2x Power Supply Module(no terminal )
